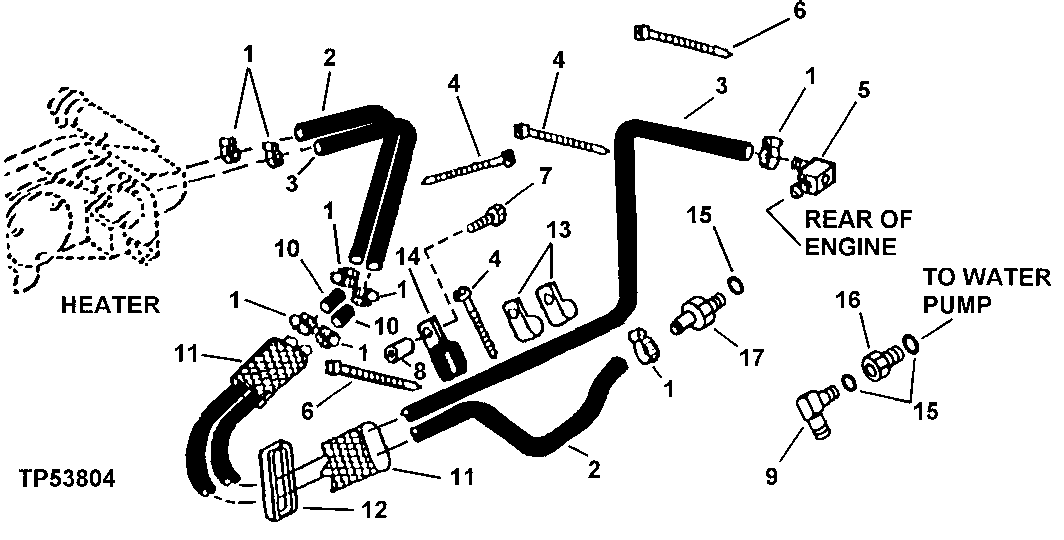

Запчасти John Deere 90ELC 208 - HEATER HOSES AND VALVES (559603 - ) 1830 HEATING AND AIR CONDITIONING

1

AR21837

Hose Clamp

8шт.

2

Hose

(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)

1шт.

3

Hose

(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)

1шт.

4

R44302

Tie Band

ARшт.

5

RE59579

Drain Valve

(SUB FOR AT35831, THIS APPLICATION)

1шт.

6

N189220

Tie Band

2шт.

7

19H3065

Cap Screw

3/8" X 2" THIRD CAPSCREW HOLE RIGHT OF OIL-PAN DIPSTICK BOSS

1шт.

8

28H3389

Spacer

0.423" X 0.675" X 1" THIRD CAPSCREW HOLE RIGHT OF OIL-PAN DIPSTICK BOSS

1шт.

9

AT174697

Elbow Fitting

(SUB FOR AT169553)

1шт.

10

T76200

Tube

(SUB FOR T76200, THIS APPLICATION)

2шт.

11

T142542

Cover

1шт.

12

R20759

Grommet

1шт.

13

T38377

Clamp

3шт.

14

AH77869

Clip

3шт.

15

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

51M7043

O-Ring

15.300 X 2.200 mm

2шт.

16

RE520229

Adapter Fitting

(SUB FOR RE68908)

1шт.

17

T161820

Adapter Fitting

1шт.
