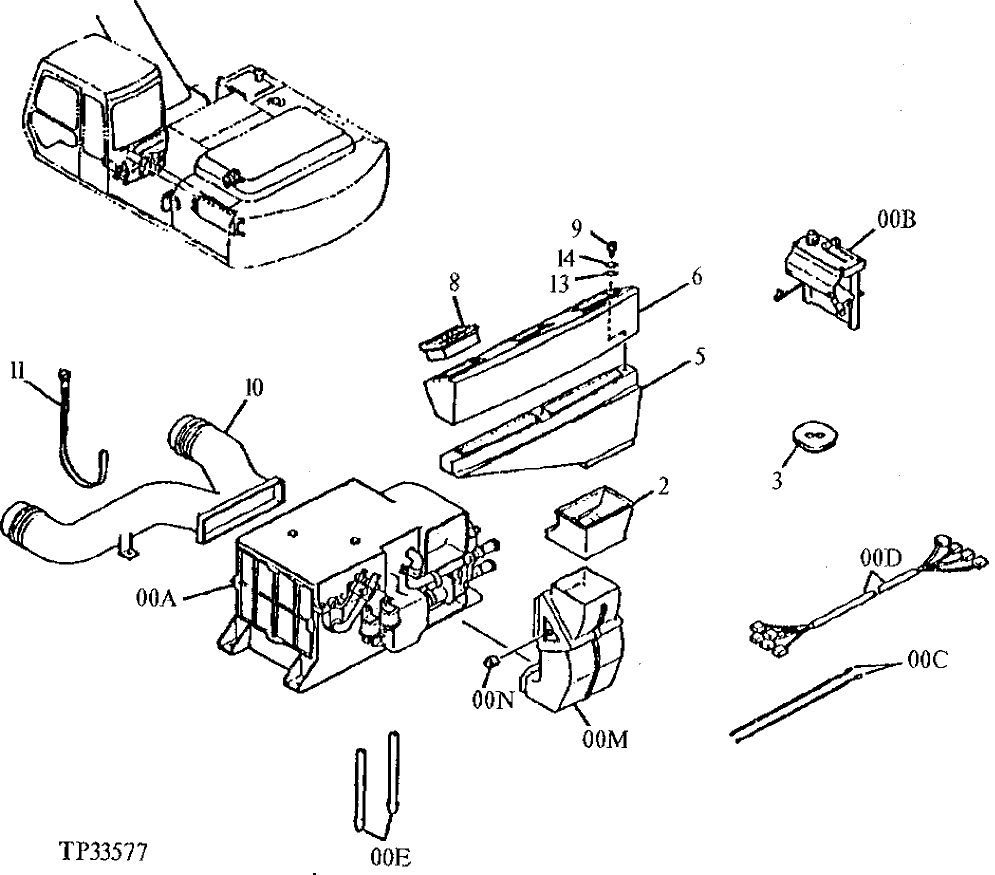

Запчасти John Deere 90ELC 206 - Air Conditioner and Heater ( - 541550) 1830 HEATING AND AIR CONDITIONING

0A

Air Conditioner

( AT155317 NO LONGER AVAILABLE)

1шт.

0B

4281181

Control

(SUB FOR AT155319)

1шт.

0C

4252000

Cable

(SUB FOR AT155267)

2шт.

0D

4281186

Wire

(SUB FOR AT155322)

1шт.

0E

4251897

Hose

(SUB FOR AT155266)

2шт.

0M

4281179

Air Duct

(SUB FOR AT155318)

1шт.

0N

4293151

Plug

(SUB FOR AT155391)

1шт.

2

4264701

Air Duct

(SUB FOR AT155292)

1шт.

3

4205082

Grommet

(SUB FOR TH108615)

1шт.

5

4264702

Air Duct

(SUB FOR AT155293)

1шт.

6

4264703

Air Duct

(SUB FOR AT155294)

1шт.

8

4259639

Grille

(SUB FOR AT154269)

3шт.

9

19M7177

Cap Screw

M6 X 35

3шт.

10

4264644

Air Duct

(SUB FOR AT155291)

1шт.

11

H77698

Tie Band

2шт.

13

12M7006

Lock Washer

6 mm

3шт.

14

24M7293

Washer

6.500 X 13 X 1.600 mm

3шт.
