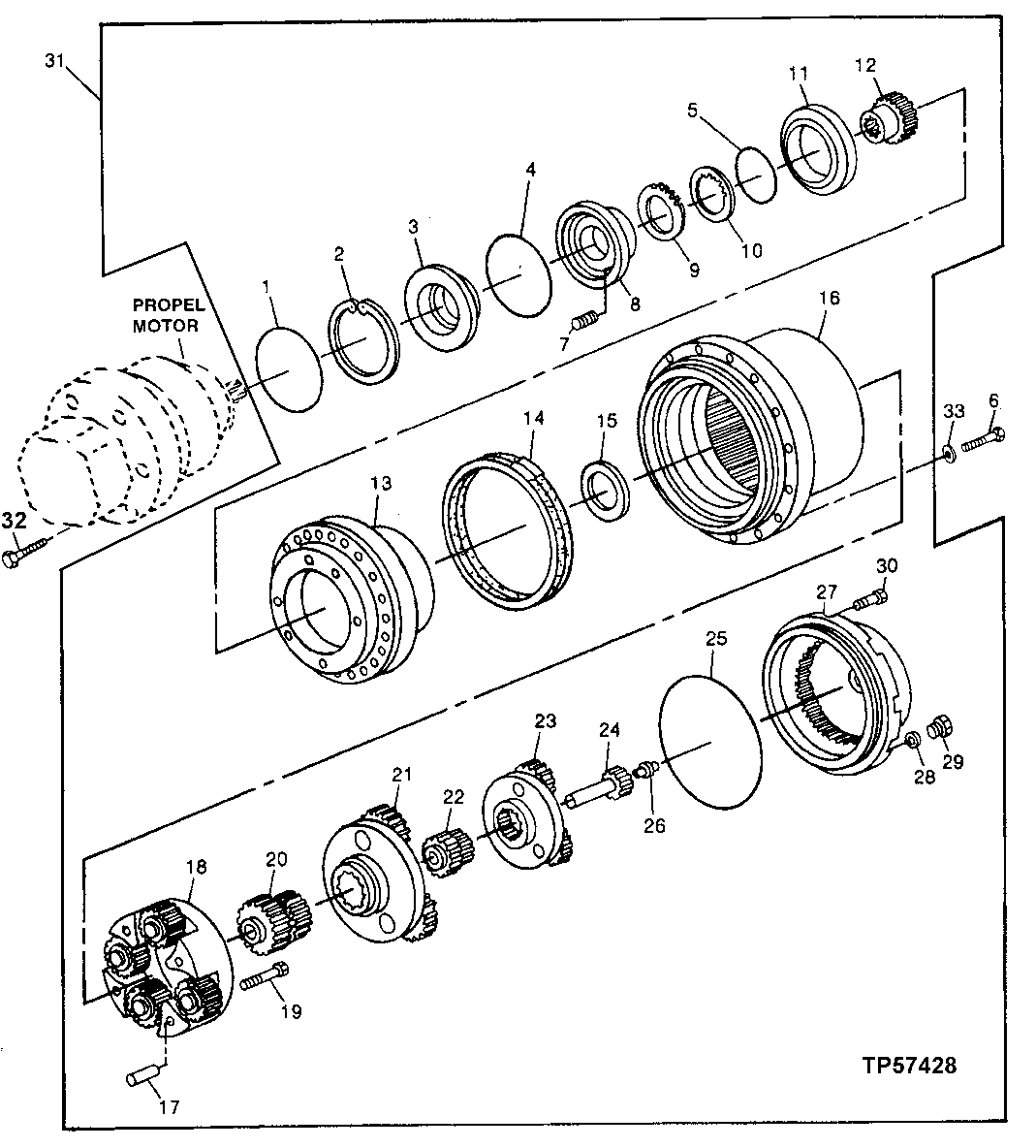

Запчасти John Deere 90ELC 9 - PROPEL PLANETARY DRIVE 0250 AXLE SHAFT, BEARINGS AND REDUCTION GEARS

1

T39414

O-Ring

1шт.

2

40M7194

Snap Ring

1шт.

3

T141723

Disk

1шт.

4

H85996

O-Ring

2шт.

5

R11120

O-Ring

1шт.

6

19M8638

Cap Screw

M20 X 65 (SUB FOR 19M8101)

16шт.

7

T141722

Spring

21шт.

8

T141721

Piston

1шт.

9

AT151908

Disk

7шт.

10

T141715

Ring

6шт.

11

T141717

Spacer

1шт.

12

T141714

Hub

1шт.

13

T141682

Hub

1шт.

14

AT151893

Seal

1шт.

15

T141683

Spacer

1шт.

16

AT151894

Housing

INCLUDES BALLS AND RACE

1шт.

17

T141685

Bushing

4шт.

18

AT151895

Planetary Assembly

THIRD

1шт.

19

T141692

Screw

4шт.

20

T141693

Pinion

THIRD PLANETARY SUN

1шт.

21

AT151903

Planetary Assembly

SECOND

1шт.

22

T141702

Pinion

SECOND PLANETARY SUN

1шт.

23

AT173345

Planetary Assembly

FIRST (MATCHED SET) (SUB FOR AT15190 5 ) (ALSO ORDER T155749 AND AT151903)

1шт.

24

T155749

Planet Pinion

FIRST PLANETARY SUN (MATCHED SET) (SUB FOR T141709 (USE WITH AT173345 AND AT151903))

1шт.

25

R37287

O-Ring

1шт.

26

T141712

Bushing

1шт.

27

AT151907

Cover

1шт.

28

T141713

Washer

2шт.

29

T142802

Drain Plug

(SUB FOR 15M7045)

2шт.

Ring

CRUSH

1шт.

30

19M8440

Screw

M10 X 25

10шт.

31

AT147222

Gear Case

1шт.

32

19M8341

Screw

M12 X 45 SOCKET HEAD

4шт.

33

24M7242

Washer

21.400 X 42 X 5 mm

16шт.
