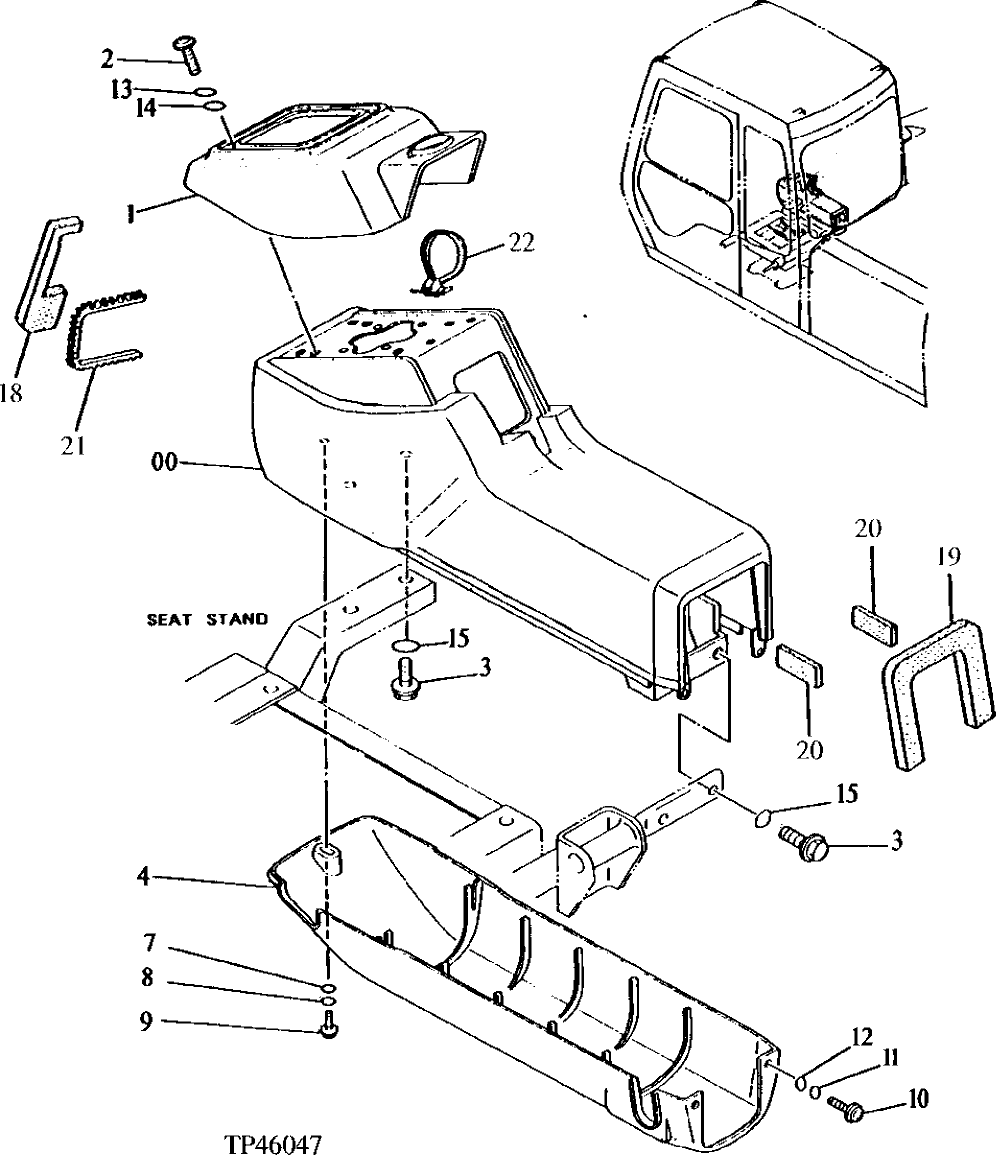

Запчасти John Deere 90ELC 179 - RIGHT CONTROL BOX 1810 Operator Enclosure

0

5002616

Stand

(SUB FOR AT154446)

1шт.

1

1015022

Cover

(SUB FOR AT154051)

1шт.

2

19M7177

Cap Screw

M6 X 35

4шт.

3

19M7662

Cap Screw

M10 X 30

4шт.

4

1015021

Cover

(SUB FOR AT154050)

1шт.

7

12M7006

Lock Washer

6 mm

1шт.

8

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

9

21M7277

Screw

M6 X 25

1шт.

10

21M7246

Screw

M6 X 16

2шт.

11

12M7006

Lock Washer

6 mm

2шт.

12

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

13

12M7006

Lock Washer

6 mm

4шт.

14

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

15

12M7066

Lock Washer

10 mm

4шт.

18

4287918

Isolator

(SUB FOR AT200500)

1шт.

19

4289705

Isolator

(SUB FOR AT200504)

1шт.

20

Rubber Mount

(CUT TO LENGTH FROM BULK MATERIAL)

2шт.

21

Bushing

(NOT AVAILABLE FOR SERVICE)

1шт.

22

H77698

Tie Band

1шт.
