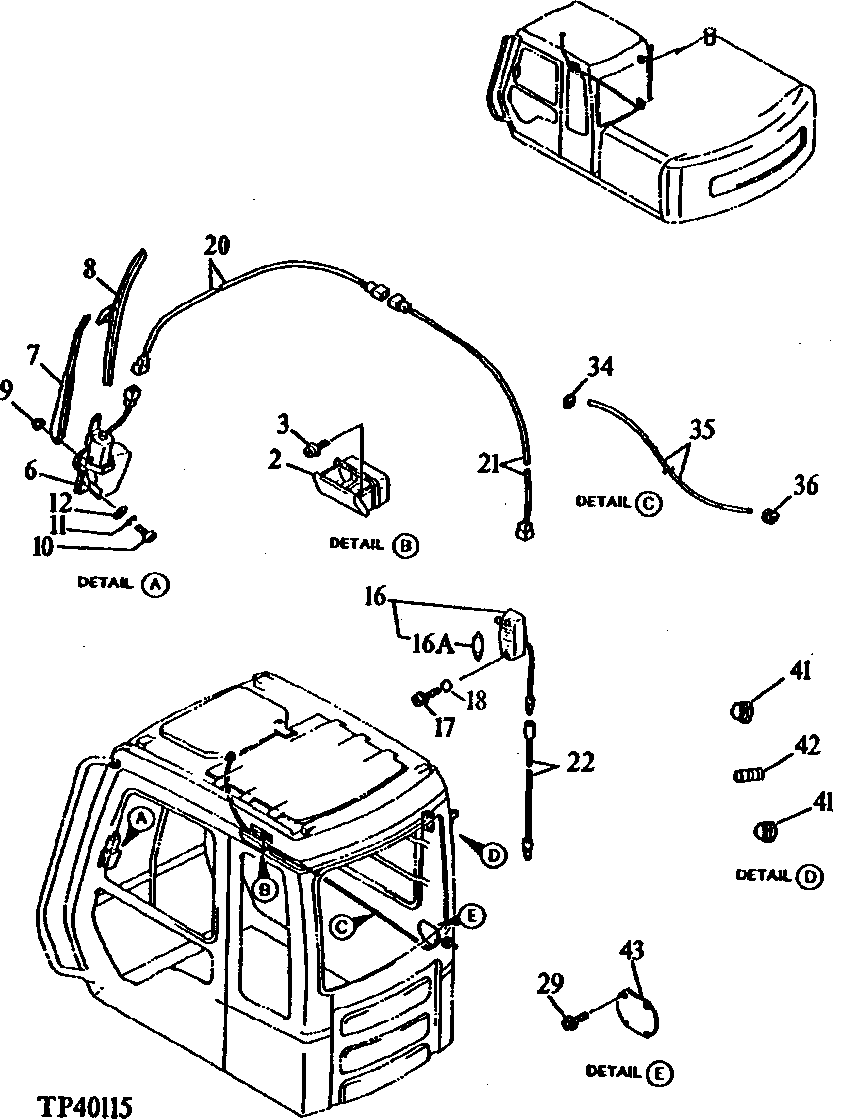

Запчасти John Deere 90ELC 177 - Cab 1810 Operator Enclosure

2

4298985

Ashtray

(SUB FOR TH101096)

1шт.

3

21M7278

Screw

M5 X 10

2шт.

6

4256364

Wiper Motor

(SUB FOR AT154235)(WIPER)

1шт.

7

4257131

Wiper Arm

(SUB FOR AT154240)

1шт.

8

TY16304

Wiper Blade

(SUB FOR 4257132 ) (ALS O ORDER TY16323)(BLACK)

1шт.

9

14M7273

Nut

M8

1шт.

10

19M7923

Cap Screw

M6 X 12

3шт.

11

12M7006

Lock Washer

6 mm

3шт.

12

24M7054

Washer

6.400 X 12 X 1.600 mm

3шт.

16

4187082

Lamp

(SUB FOR TH108567)(DOME)

1шт.

16A

4187083

Bulb

(SUB FOR TH108568)

1шт.

17

21M7347

Screw

M5 X 14

2шт.

18

12M7064

Lock Washer

5 mm

2шт.

20

4260367

Wiring Harness

(SUB FOR AT154276)(WIPER)

1шт.

21

4260368

Wiring Harness

(SUB FOR AT154277)(WIPER)

1шт.

22

4260369

Wiring Harness

(SUB FOR AT154278)(DOME LIGHT)

1шт.

29

J680414

Screw

(SUB FOR AT153813)(FOR UNITS WITHOUT RADIO)

4шт.

34

4282793

Nozzle

(SUB FOR AT154358)

1шт.

35

Bulk Hose

(SUB FOR R54445 AND R104595 )( R120653 NLA) (MF TY25139)

ARшт.

36

4287903

Grommet

(SUB FOR AT154413)

1шт.

41

4266964

Plug

(SUB FOR AT155697)

2шт.

42

4266963

Plug

(SUB FOR AT155699)

1шт.

43

3062144

Cover

(SUB FOR AT155698)

1шт.

TY16323

Adapter Kit

INCLUDES ALL PARTS (WIPER BLADES)

1шт.
