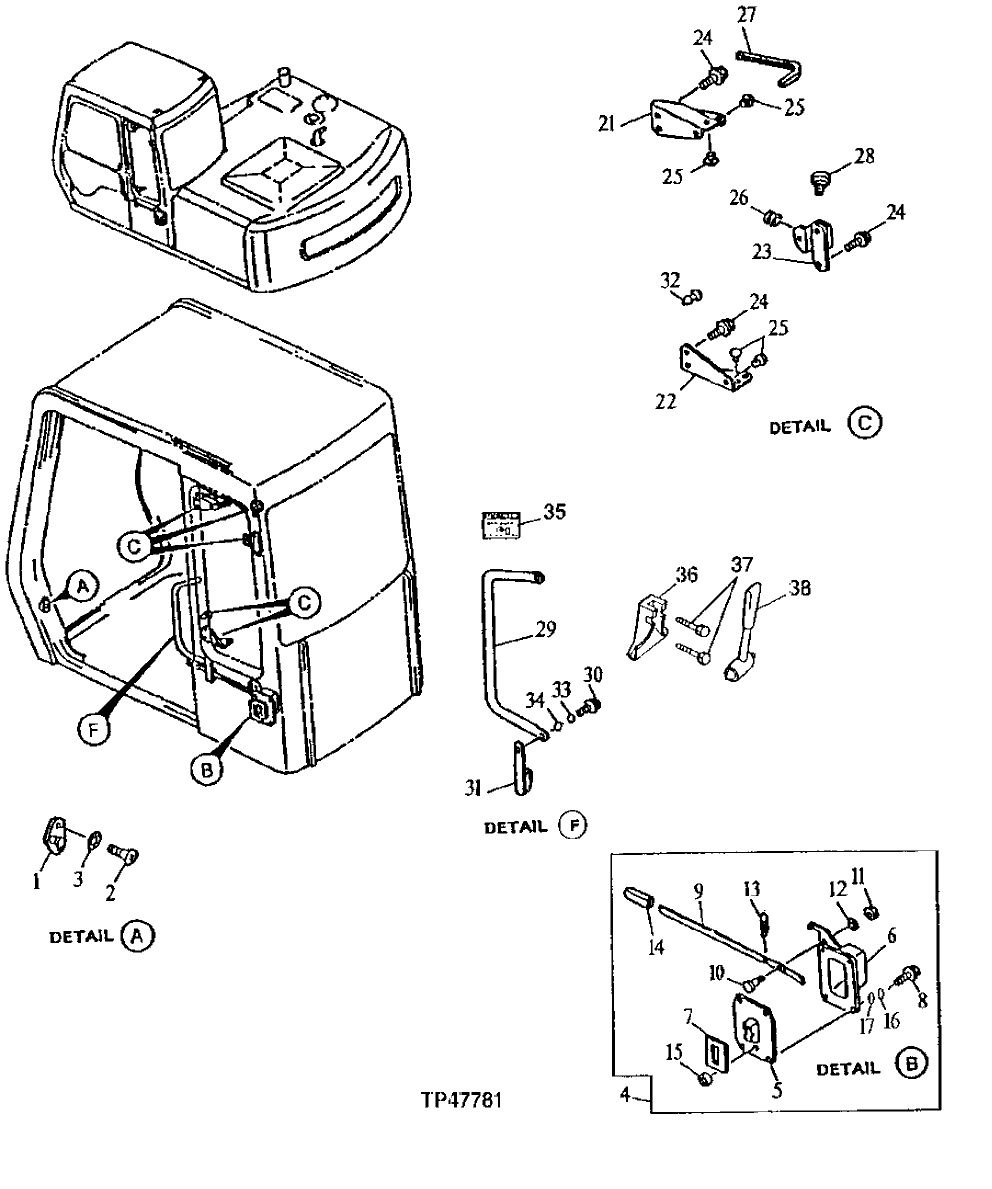

Запчасти John Deere 90ELC 173 - Cab 1810 Operator Enclosure
№
Артикул
Название
Примечание
Количество
0
4282696
Cab
(SUB FOR AT154356)(NOT ILLUSTRATED) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPO NENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )
1шт.
1
4347518
Striker
(SUB FOR TH101170 OR 4128473)
1шт.
2
T116328
Screw
2шт.
4320163
Screw
(SUB FOR AT200584)
2шт.
3
Washer
(NOT AVAILABLE FOR SERVICE)
2шт.
4
4289533
Catch
(SUB FOR AT154443)
1шт.
5
4204588
Lock
(SUB FOR TH108670)
1шт.
6
4295560
Cover
(SUB FOR AT157050)
1шт.
7
4204590
Gasket
(SUB FOR TH108672)
1шт.
8
19M7139
Cap Screw
M8 X 20
4шт.
9
4295561
Lever
(SUB FOR AT157051)
1шт.
10
4204593
Bolt
(SUB FOR TH108675)
1шт.
12
12M7006
Lock Washer
6 mm
1шт.
13
4208103
Spring
(SUB FOR TH108676 ) (SUB FOR AT121585)
1шт.
14
4089012
Cap
(SUB FOR TH101184)
1шт.
15
4204591
Seal
(SUB FOR TH108673)
1шт.
16
12M7056
Lock Washer
8 mm (SUB FOR 12M7065)
4шт.
17
24M7055
Washer
8.400 X 16 X 1.600 mm
4шт.
21
4295559
Bracket
(SUB FOR AT157052)
1шт.
4204601
Bracket
(SUB FOR TH108684)
1шт.
22
4295558
Bracket
(SUB FOR AT157053)
1шт.
4204602
Bracket
(SUB FOR TH108685)
1шт.
23
4295552
Bracket
(SUB FOR AT157054)
1шт.
4204602
Bracket
(SUB FOR TH108685)
1шт.
24
19M7139
Cap Screw
M8 X 20
6шт.
25
4295489
Cushion
(SUB FOR AT156996)
5шт.
26
4204604
Grommet
(SUB FOR TH108687)
1шт.
27
4295607
Belting
(SUB FOR AT157056)
1шт.
28
4295573
Hook
(SUB FOR AT157057)
1шт.
29
4222359J
Handrail
(SUB FOR AT157058 OR 4222359)
1шт.
4320165J
Handrail
(SUB FOR AT200586 OR 4320165)
1шт.
31
4295574
Stop
(SUB FOR AT157060)
1шт.
4320166
Isolator
(SUB FOR AT200587)
1шт.
32
Clip
(NOT AVAILABLE FOR SERVICE)
1шт.
34
24M7028
Washer
10.500 X 20 X 2 mm
2шт.
35
T190393
Label
(SUB FOR T157809)(IMPORTANT - B REAK WINDOW FOR SECONDARY EXIT)
1шт.
36
2038764
Bracket
(SUB FOR T158021)
1шт.
37
19M7372
Cap Screw
M5 X 16
2шт.
24M7348
Washer
5.500 X 10 X 1 mm
2шт.
38
4362700
Hammer
(SUB FOR T158020)
1шт.
Выбрано товаров: 44
