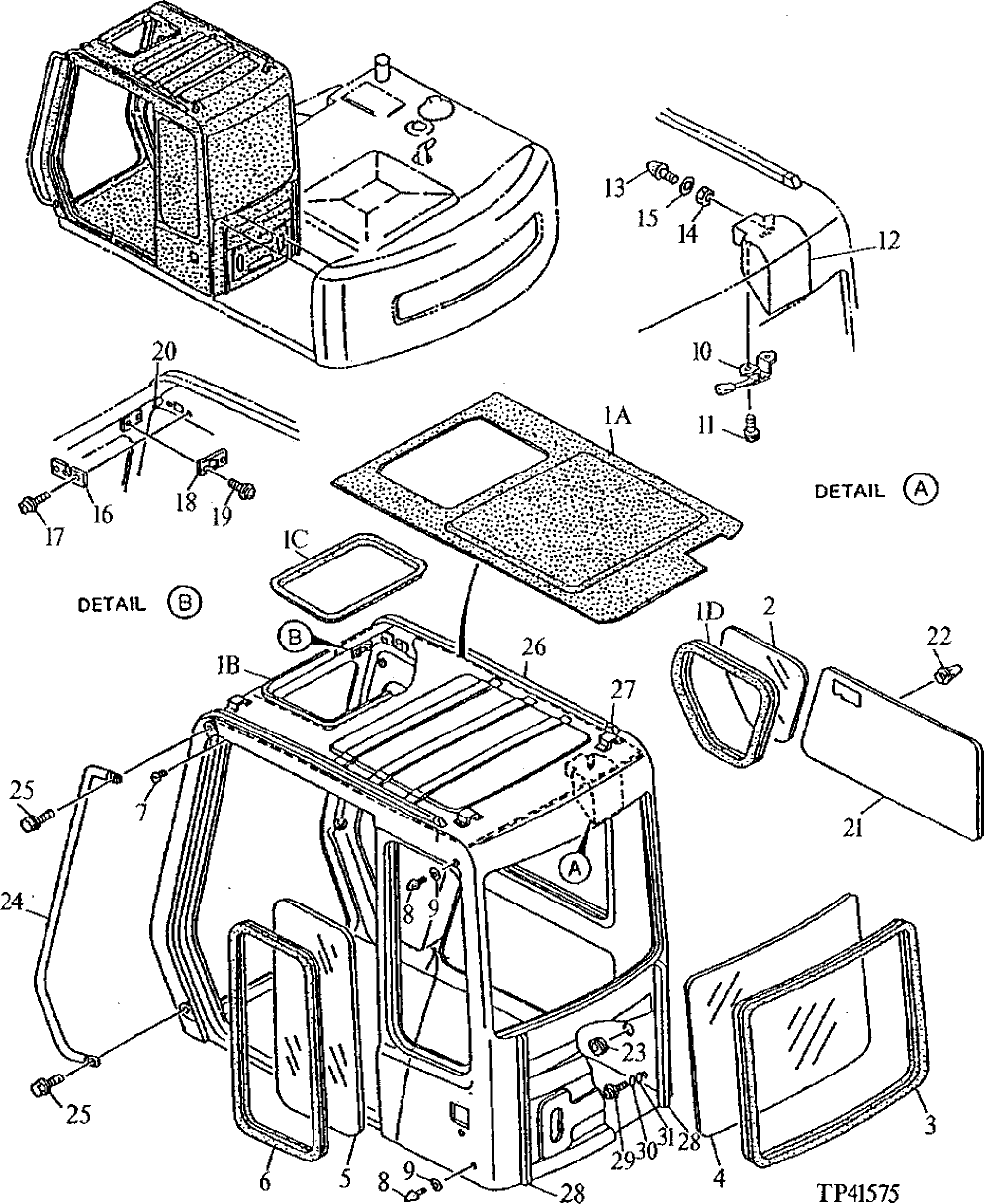

Запчасти John Deere 90ELC 168 - Cab 1810 Operator Enclosure

0

4282696

Cab

(SUB FOR AT154356)(CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITIONA L COMPONENTS SEE FOLLOWING PAGES)

1шт.

1A

4295419

Sealing Trim

(SUB FOR AT156962)

1шт.

4320143

Pad

(SUB FOR AT162722)

1шт.

1B

4295420

Holder

(SUB FOR AT156963)

1шт.

1C

4341218

Isolator

(SUB FOR AT156964 ) (SUB FOR AT203635)

1шт.

1D

4289528

Isolator

(SUB FOR AT154438)

1шт.

2

AT154437

Windowpane

1шт.

3

4289532

Isolator

(SUB FOR AT154442)

1шт.

4

4289531R

Windowpane

(SUB FOR AT154441 OR 4289531)

1шт.

5

AT154439

Windowpane

1шт.

6

4289530

Isolator

(SUB FOR AT154440)

1шт.

7

4172321

Bumper

(SUB FOR TH108666)

1шт.

8

4304827

Bumper

(SUB FOR AT156970)

2шт.

9

4204587

Washer

(SUB FOR TH108669)

2шт.

10

4320144

Lock

(SUB FOR AT156971)

1шт.

11

19M7139

Cap Screw

M8 X 20

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

19M7932

Cap Screw

M8 X 16

2шт.

12

4295857

Cover

(SUB FOR AT156972)

1шт.

Cover

(NO LONGER REQUIRED)

1шт.

13

4204586

Bumper

(SUB FOR TH108668)

1шт.

14

14M7274

Nut

M10

1шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

16

4204599

Shim

(SUB FOR TH108682)

1шт.

17

Screw

(SUB FOR AT156973)( J460410 NLA)

2шт.

21M7396

Screw

M4 X 10

2шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

2шт.

12H315

Lock Washer

0.164"

2шт.

18

4204600

Bracket

(SUB FOR TH108683)

1шт.

19

Screw

(SUB FOR AT156974)( J460310 NLA)

2шт.

21M7394

Screw

M3 X 10

1шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

1шт.

12H233

Lock Washer

1/8"

1шт.

20

4295422

Clip

(SUB FOR AT156975)

1шт.

21

Sealing Trim

( AT156976 NO LONGER AVAILABLE) (SUB 4320146, ALONG WITH 4372272)

1шт.

4372271

Pad

(SUB FOR 4320146 ) (SUB FOR AT200579)

1шт.

22

4204607

Clip

(SUB FOR TH108690)

10шт.

23

4146559

Grommet

(SUB FOR TH108691, THIS APPL ICATION ) (SUB FOR TH108788)

1шт.

24

Handrail

(SUB AT200583)( AT1569 77 NO LONGER AVAILABLE)

1шт.

4320151J

Handrail

(SUB FOR AT200583 OR 4320151)

1шт.

25

T116333

Bolt

2шт.

19M7550

Cap Screw

M10 X 35 (SUB FOR 4320149, AL ONG WITH 24H1305 AND 12M7066)

2шт.

24H1305

Washer

13/32" X 13/16" X 0.065"

2шт.

12M7066

Lock Washer

10 mm

2шт.

26

4295425

Molding

(SUB FOR AT156979)

2шт.

27

Cover

(NOT AVAILABLE FOR SERVICE)

2шт.

28

4295472

Molding

(SUB FOR AT156981)

2шт.

Molding

(NO LONGER REQUIRED)

2шт.

29

19M8425

Cap Screw

M6 X 16

1шт.

19M8425

Cap Screw

M6 X 16 (SUB FOR 4320150, AL ONG WITH 24H1287 AND 12M7006)

1шт.

24H1287

Washer

9/32" X 5/8" X 0.065"

1шт.

12M7006

Lock Washer

6 mm

1шт.

30

12M7006

Lock Washer

6 mm

1шт.

31

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.
