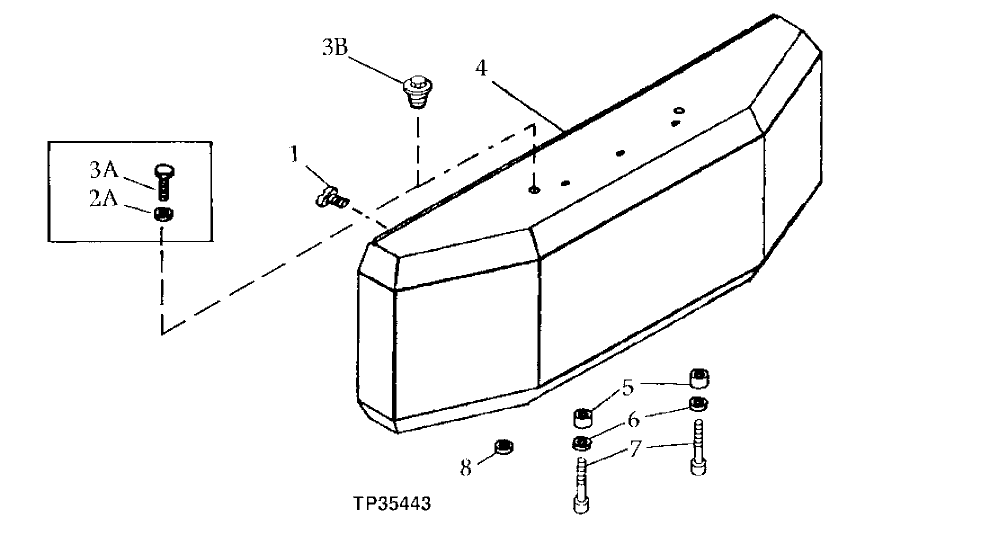

Запчасти John Deere 90ELC 164 - Main Counterweight 1749 Chassis Weights

1

37M7100

Screw

M3.5 X 9.5

1шт.

2A

U42521

Bushing

2шт.

3A

19M7994

Cap Screw

M30 X 55

2шт.

3B

AT169951

Plug

2шт.

4

AT139600

Counterweight

(STANDARD) 3720 KG (8200 LB)

1шт.

AT162960

Counterweight

(HEAVY) 4625 KG (10200 LB)

1шт.

5

N241008

Spacer

6шт.

6

24M7243

Washer

25.400 X 50 X 6 mm

6шт.

7

19M7782

Cap Screw

M24 X 180 (SUB FOR 19M8740)

6шт.

8

24H1518

Washer

1-13/32" X 2-3/4" X 0.060" (USE AS SHI M BETWEEN COUNTERWEIGHT AND MAINFRAME)

4шт.
