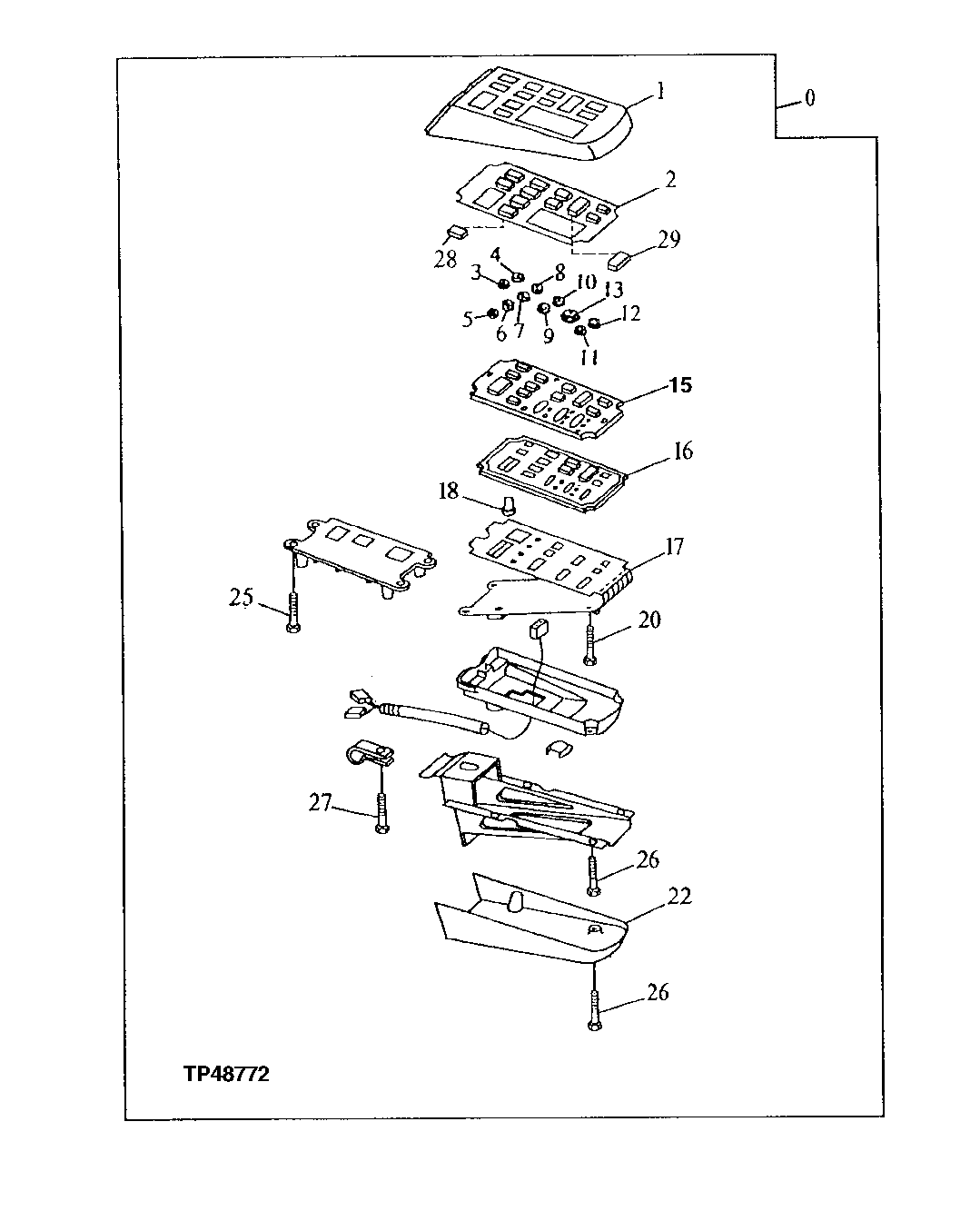

Запчасти John Deere 90ELC 152 - Switch Box 1674 Wiring Harness And Switches

0

4331399

Switch

(SUB FOR AT156813 ) (SUB FOR AT16909 7)(ENGINE SPEED, PUMP MODE, PROPEL SP EED, AUTOMATIC IDLE AND SWING BRAKE)

1шт.

1

4297116

Case

(SUB FOR AT155590)

1шт.

2

4297115

Switch

(SUB FOR AT155591)RUBBER BOOT PLATE

1шт.

3

4297090

Panel

(THROTTLE DOWN) (SUB FOR AT155592)

1шт.

4

4297091

Panel

(THROTTLE UP) (SUB FOR AT155593)

1шт.

5

4297092

Panel

(MARKED I) (SUB FOR AT155594)

1шт.

6

4297093

Panel

(MARKED L) (SUB FOR AT155595)

1шт.

7

4297094

Panel

(MARKED E) (SUB FOR AT155596)

1шт.

8

4297095

Panel

(MARKED P) (SUB FOR AT155597)

1шт.

9

4297096

Panel

(SUB FOR AT155598)

1шт.

10

4297097

Panel

(SUB FOR AT155599)

1шт.

11

4297098

Panel

(SUB FOR AT155600)

1шт.

12

4297099

Panel

(SUB FOR AT155601)

1шт.

13

4297100

Panel

(SUB FOR AT155602)

1шт.

15

Plate

CONTACT

1шт.

16

4297112

Switch

(SUB FOR AT155605)PLATE

1шт.

17

4341184

Board

(SUB FOR AT155606 ) (SUB FOR AT202341)

1шт.

18

4297110

Lamp

(SUB FOR AT155607)

2шт.

20

4297108

Screw

(SUB FOR AT155609)

1шт.

22

4297106

Cover

(SUB FOR AT155611)

1шт.

25

4297103

Screw

(SUB FOR AT155614)

4шт.

26

Screw With Washer

(SUB FOR AT155615)( 4297102 NLA)

12шт.

21M7396

Screw

M4 X 10

12шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

12шт.

12H315

Lock Washer

0.164"

12шт.

27

T116079

Screw

(SUB FOR AT155616, 4297101)

1шт.

28

4311599

Spacer

(SUB FOR AT201048)

10шт.

29

4311628

Spacer

(SUB FOR AT165106)

1шт.
