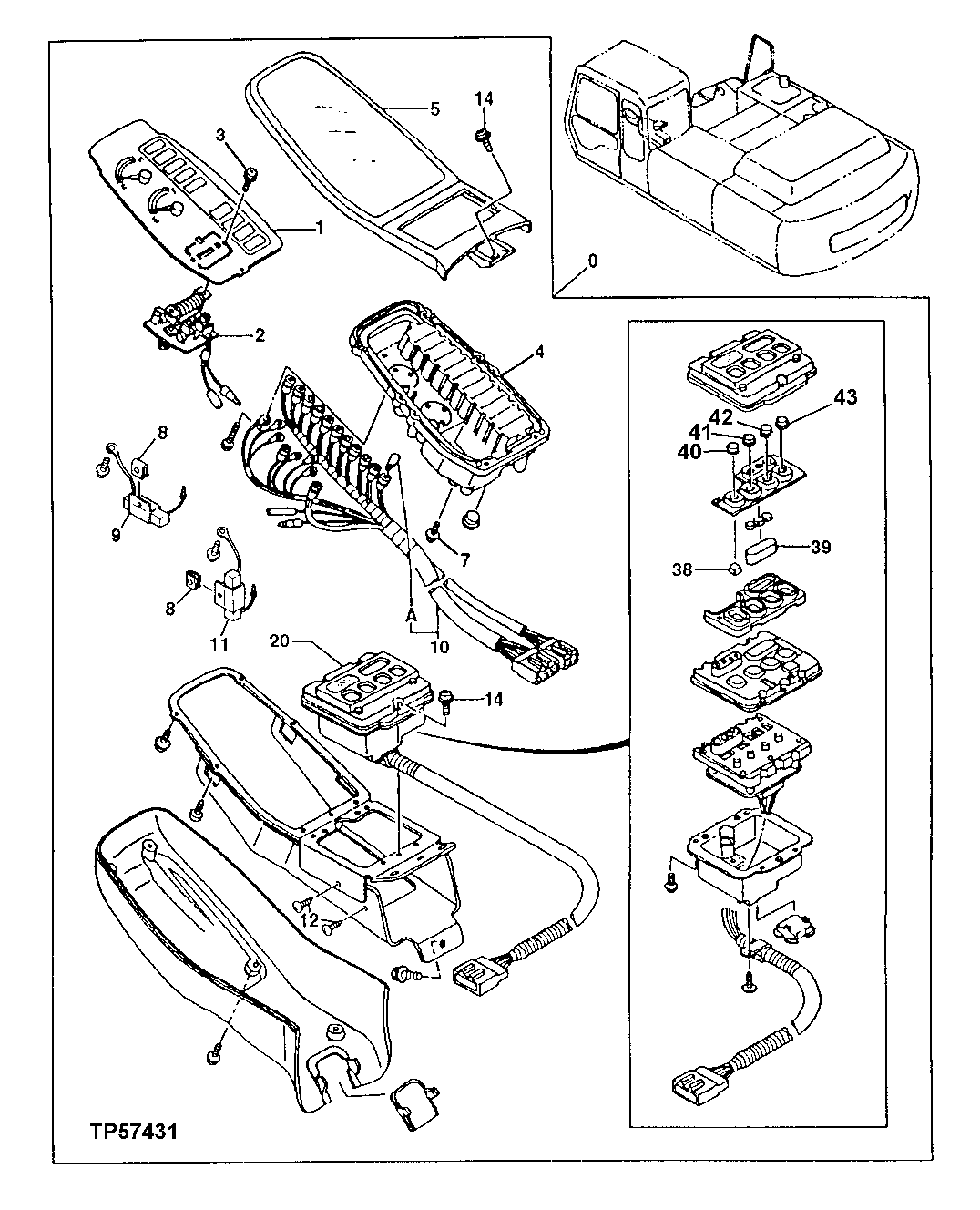

Запчасти John Deere 90ELC 151 - Instrument Panel 1674 Wiring Harness And Switches

0

4282697

Gauge

(SUB FOR AT154965)

1шт.

4335327

Gauge

(SUB FOR AT171187)

1шт.

1

Cover

(FUEL AND TEMPERATURE GAUGE) ( 4302534 NO LONGER AVAILABLE) (SUB 4311598, ALO NG WITH 4323939, AT165598, (2) 4323980 , (3) 4335441, (4) 4311599 AND 4325818)

1шт.

4325818

Cover

(SUB FOR AT165596)(FUEL AND TEMPERATURE GAUGE)

1шт.

4350844

Cover

(SUB FOR AT171188)

1шт.

2

Meter

(HOUR) ( AT155662 NO LONGER AVAILA BLE) (SUB AT201076, ALONG WITH AT16 5596, AT165598, (2) AT165597, (3) AT165599, (4) AT201048 AND AT201047 )

1шт.

4323939

Meter

(SUB FOR AT201076)(HOUR)

1шт.

3

Bolt

( AT155663 NOT AVAILABLE FOR SERVICE)

2шт.

4323980

Bolt

(SUB FOR AT165597)

2шт.

4

Housing

(SUB AT165598, ALONG WITH AT16559 6, AT201076, (2) AT165597, (3) AT 165599, (4) AT201048 AND AT201047)

1шт.

4323720

Housing

(SUB FOR AT165598)

1шт.

5

4297131

Housing

(SUB FOR AT155665)

1шт.

7

Screw

(NOT AVAILABLE FOR SERVICE)

3шт.

4335441

Screw

(SUB FOR AT165599)

3шт.

8

4361622

Nut

(SUB FOR AT174914)

2шт.

9

4360152

Resistor

(SUB FOR AT174911)

1шт.

10

4297126

Wiring Harness

(SUB FOR AT155670)

1шт.

10A

4297110

Lamp

(SUB FOR AT155607)

14шт.

11

4360157

Resistor

(SUB FOR AT174912)

1шт.

12

4361621

Screw

(SUB FOR AT174913)

2шт.

14

Screw With Washer

(SUB FOR AT155615)( 4297102 NLA)

4шт.

21M7396

Screw

M4 X 10

4шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

4шт.

12H315

Lock Washer

0.164"

4шт.

20

4297124

Switch

(SUB FOR AT155677)(LIGHTS, WINDSHIEL D WIPER/WASHER AND FLUID LEVEL CHECK)

1шт.

38

4311599

Spacer

(SUB FOR AT201048)

4шт.

39

4311598

Spacer

(SUB FOR AT201047)

1шт.

40

4298924

Panel

(LIGHT)

1шт.

41

4298923

Panel

(WIPER)

1шт.

42

4298922

Panel

(WASHER)

1шт.

43

4298921

Panel

(BUZZER)

1шт.
