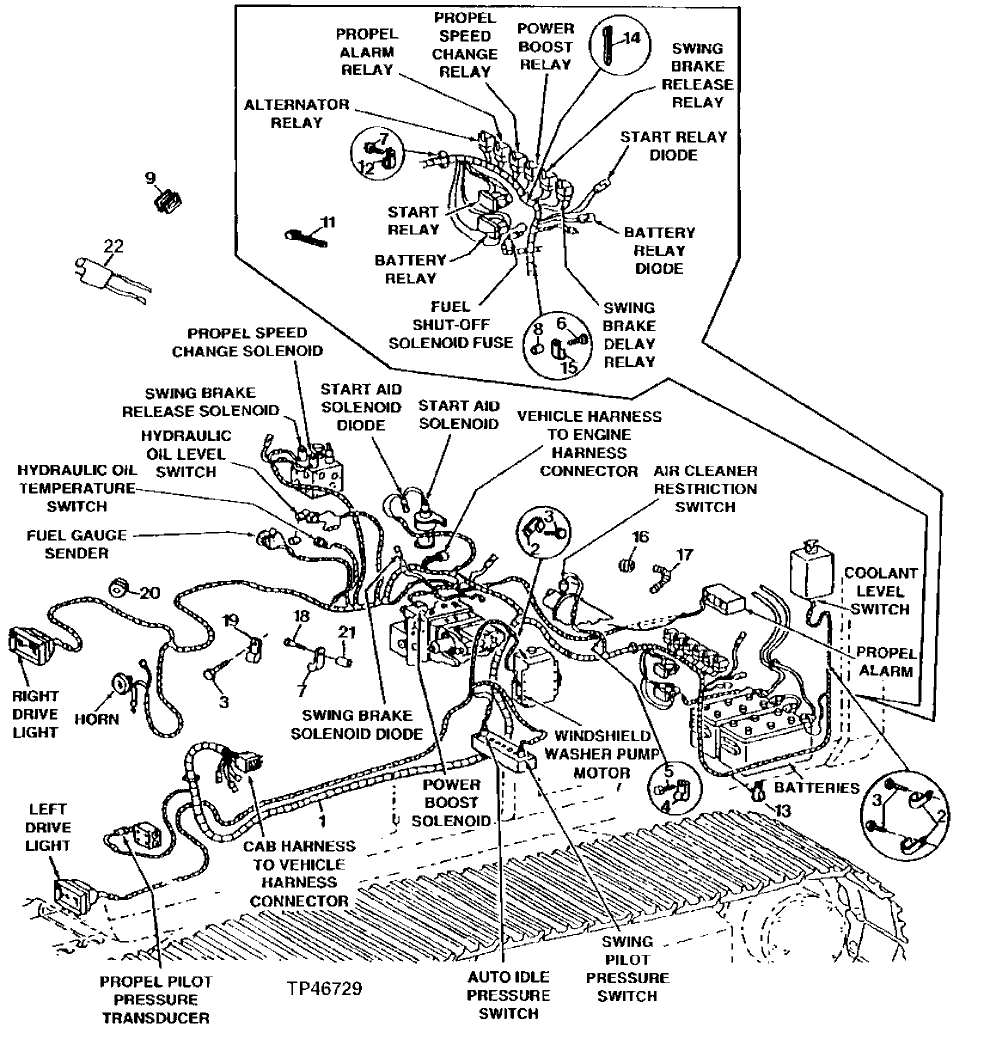

Запчасти John Deere 90ELC 143 - Vehicle Wiring Harness 1674 Wiring Harness And Switches

1

AT147312

Wiring Harness

VEHICLE

1шт.

AT159464

Wiring Harness

VEHICLE

1шт.

AT171867

Wiring Harness

VEHICLE

1шт.

AT178073

Wiring Harness

VEHICLE

1шт.

57M7329

Fuse

(NOT ILLUSTRATED)

1шт.

2

T19935

Clamp

18шт.

3

19M7784

Screw

M10 X 20

16шт.

4

T27550

Clip

3шт.

5

19M7784

Screw

M10 X 20

4шт.

6

19M7807

Screw

M10 X 60 (SUB FOR 19M7 658, THIS APPLICATION)

1шт.

7

T38377

Clamp

5шт.

8

28H1497

Bushing

0.493" X 0.675" X 1-1/2" FRONT SIDE OF CENTER BAFFLE LEFT SIDE

1шт.

9

R20759

Grommet

1шт.

10

AR94101

Diode

DIODE

7шт.

11

R44302

Tie Band

8 - ONE FOR EACH DIODE, START RELAY, L EAD FUSE, CONVERTER LEAD, AIR CONDITION ING LOW PRESSURE SWITCH LEAD, AUTO IDLE SWITCH LEADS AND AIR CONDITIONING CAB; 9 - ONE FOR EACH DIODE, SWING BRAKE LE AD

17шт.

12

19M7783

Screw

M10 X 16

7шт.

13

T13744

Clamp

1шт.

14

H77698

Tie Band

HARNESS CONNECTORS TO RELAYS

7шт.

15

T27550

Clip

1шт.

16

T101880

Conduit

PROPEL ALARM WIRING HARNESS

1шт.

17

B30667

Grommet

PROPEL ALARM LEAD

1шт.

18

19M7810

Screw

M10 X 80 FRONT SIDE OF CENTER BAFFLE LEFT SIDE

1шт.

19

H75541

Clamp

2шт.

20

N31425

Grommet

HARNESS LIGHT LEAD LEFT SIDE OF TOOLBOX

1шт.

21

28H1636

Bushing

0.493" X 0.675" X 2-1/2"

1шт.

22

AT172578

Wiring Harness

(DIODE) (USED TO PROTECT AGAINST VOLTAGE SPIKES)

1шт.
