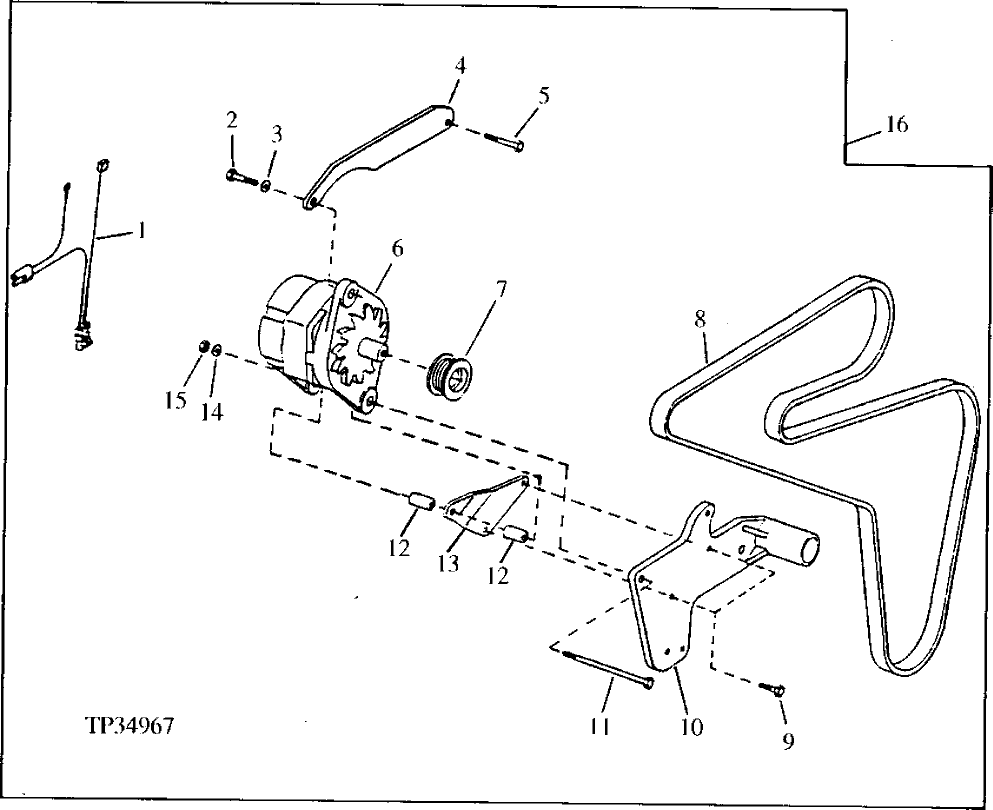

Запчасти John Deere 90ELC 139 - 50 AMP ALTERNATOR AND MOUNTING 1672 ALTERNATOR, REGULATOR AND CHARGING SYSTEM WIRING

1

RE57051

Wiring Harness

ALTERNATOR

1шт.

2

19H3385

Cap Screw

1/2" X 1-1/8"

1шт.

3

24H1625

Washer

17/32" X 1" X 0.120"

1шт.

4

R120459

Bracket

1шт.

5

19H1765

Cap Screw

3/8" X 1-3/4"

1шт.

6

TY25949

Alternator

(SUB FOR AT85458, OR T Y6681 THIS APPLICATION)

1шт.

TY25949

Alternator

NLA (ORDER SE501345) (SUB F OR TY6681) (24 VOLT 50 AMP)

1шт.

SE501345

Alternator

REMAN FOR TY25949 OR AT85458

1шт.

7

R120420

Pulley

1шт.

8

R120524

V-Belt

1шт.

9

19H2639

Cap Screw

3/8" X 3-3/8"

2шт.

10

Housing

FAN BEARING ASSEMBLY (SUB J D10058, RE56049 AND R100743)

1шт.

JD10058

Ball Bearing

1шт.

RE56049

Bearing Housing W/O Bearing

1шт.

R100743

Hub

1шт.

11

19H3542

Cap Screw

1/2" X 6-1/2"

1шт.

12

28H2592

Bushing

0.546" X 0.840" X 1-3/4"

2шт.

13

R120427

Bracket

1шт.

14

12H301

Lock Washer

1/2"

1шт.

15

14H1040

Nut

1/2"

1шт.

16

RE527815

Engine Kit

50 AMP ALTERNATOR AND MOUNTING ( RE57214 NO LONGER AVAILABLE)

1шт.
