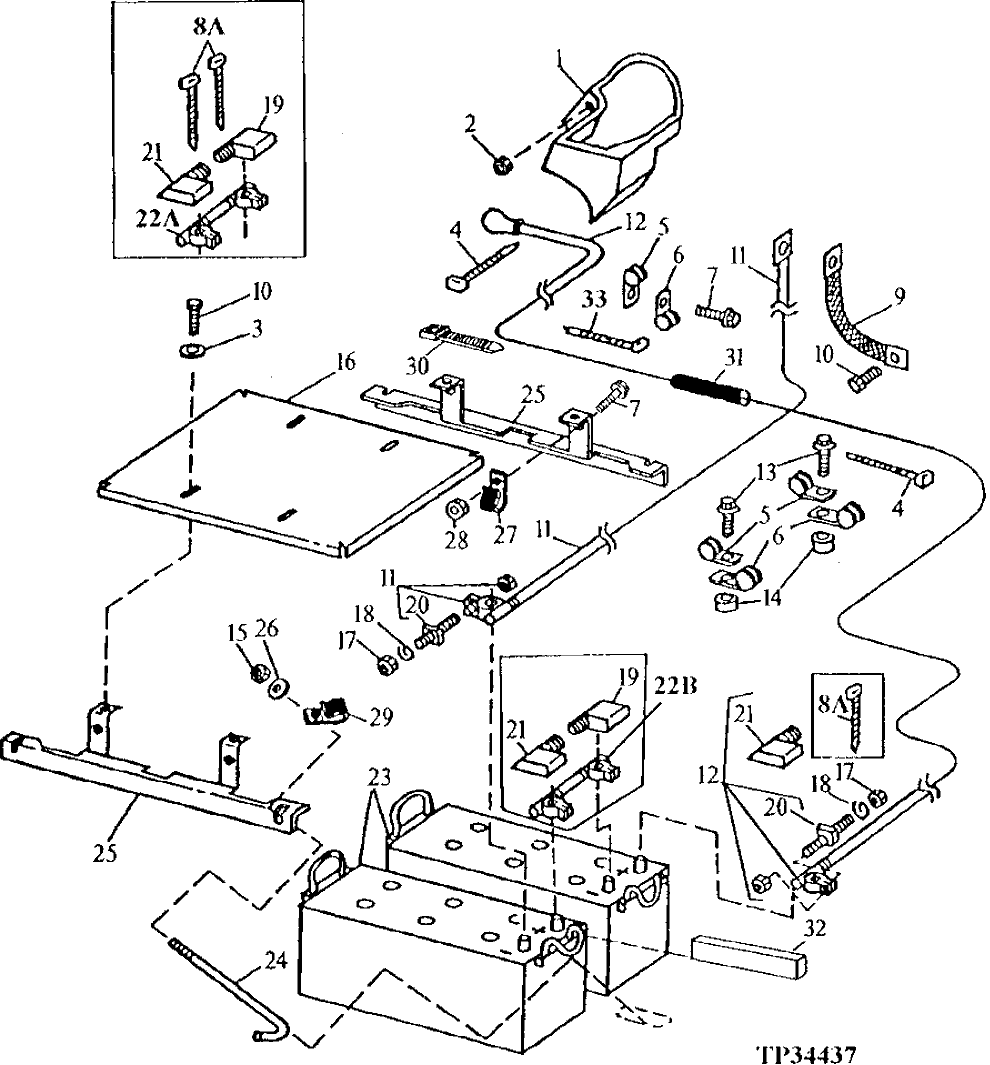

Запчасти John Deere 90ELC 136 - BATTERIES, BATTERY CABLES AND BATTERY COVER 1671 BATTERIES, SUPPORT AND CABLES

1

R99303

Shield

STARTER SOLENOID TERMINALS

1шт.

2

14H631

Nut

0.190" SHIELD TO STARTER SOLENOID TERMINALS

1шт.

3

24H1330

Washer

15/32" X 1-3/8" X 7/64"

4шт.

4

H77698

Tie Band

ONE USED TO FASTEN SHIELD TO STARTER SOLENOID AND ONE USED TO FASTEN BOTH BATTERY CABLES TO LOWER RADIATOR HOS E

2шт.

5

R46414

Clamp

3шт.

6

T38377

Clamp

3шт.

7

19M7784

Screw

M10 X 20 BATTERY CABLE CLAM PS TO LEFT REAR ENGINE MOUNT

3шт.

8A

R44302

Tie Band

3шт.

9

AT47069

Ground Cable

1шт.

10

19M7785

Screw

M10 X 25 ONE BRAIDED GROUND ST RAP TO RIGHT REAR ENGINE MOUNT

5шт.

11

AT147408

Battery Cable

1шт.

12

AT147407

Battery Cable

1шт.

13

19M7658

Cap Screw

M10 X 50 BATTERY CABLE CLAMPS TO MAINFRAME

2шт.

14

28H1600

Spacer

0.546" X 0.840" X 1"

2шт.

15

14M7166

Lock Nut

M8

4шт.

16

T139629

Cover

1шт.

17

14H785

Nut

5/16"

2шт.

18

12H303

Lock Washer

5/16"

2шт.

19

T107114

Cover

1шт.

20

T31161

Stud

2шт.

21

T107115

Cover

2шт.

22A

AT165190

Battery Cable

(SUB FOR AR45927)

1шт.

22B

AT165190

Battery Cable

1шт.

23

TY23020

Dry Charged Battery

(SUB FOR TY21709)

2шт.

24

T138510

Hook Bolt

4шт.

25

AT152102

Clamp

2шт.

26

24M7298

Washer

8.400 X 25 X 2 mm (SUB FOR 24M7207)

4шт.

27

T19935

Clamp

(USE WITH BATTERY DISCONNECT LEAD)

2шт.

28

14M7167

Lock Nut

M10

3шт.

29

T19935

Clamp

1шт.

30

N189220

Tie Band

(POSITIVE, SLEEVED BATTERY C ABLE TO LOWER RADIATOR HOSE)

1шт.

31

T134295

Sleeve

1шт.

32

Isolator

( T45642 NO LONGER REQUIRED) (INSTALL BETWEEN BATTERIES)

1шт.

33

R44302

Tie Band

(1-SECURE POSITIVE AND NEGATIVE CABLES TOG ETHER BETWEEN LEFT FRAME RAIL AND STARTER)

ARшт.
