Запчасти John Deere 90ELC 4 - Track 0130 Track Systems

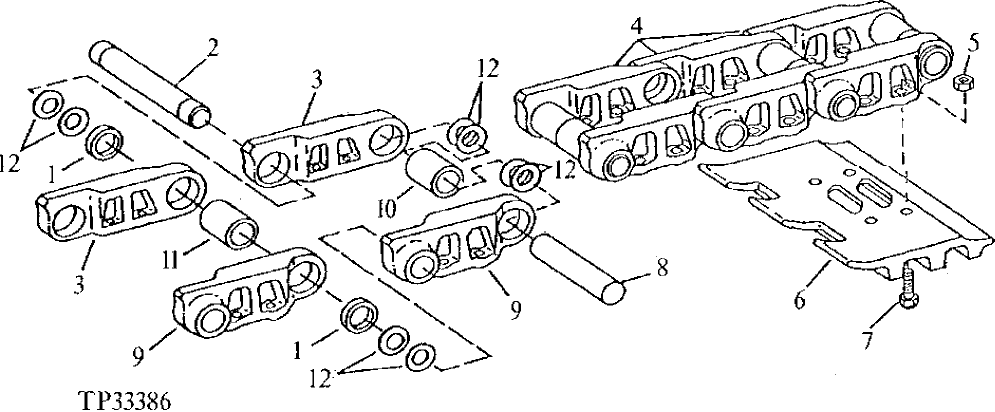

Схема запчастей John Deere 90ELC - 4 - Track 0130 Track Systems

Артикул

Название

Примечание

Количество

1

T139610

Washer

(K) USE WITH MASTER PIN

2шт.

2

T139609

Master Track Pin

(K) Master

1шт.

3

T139600

Track Link

49шт.

4

AT152088

Track Chain W/O Shoes

NLA

1шт.

5

T139615

Nut

196шт.

6

T139611

Open Center 3 Bar Shoe

650MM

49шт.

T139612

Triple Bar Shoe

750MM

49шт.

T139613

Open Center 3 Bar Shoe

800MM

49шт.

T142593

Single Bar Shoe

650MM SINGLE GROUSER

49шт.

7

T139614

Bolt

USE WITH TRIPLE BAR SHOES

196шт.

T142594

Track Bolt

USE WITH T142593

196шт.

8

T139607

Track Pin

(K)

49шт.

9

T139601

Track Link

49шт.

10

T139606

Bushing

(K)

49шт.

11

T139608

Track Bushing

(K) MASTER

1шт.

12

T139616

Disk Spring

(K)

196шт.

13

AT302255

Pin & Bushing Kit

KIT INCLUDES (2) T139610, T139609 , (4) T139616 KIT NOT ILLUSTRATED

1шт.

AT156588

Bushing Kit

INCLUDES ALL (K) PARTS, CO NTAINS 48 PINS AND BUSHINGS

1шт.

Выбрано товаров: 18
