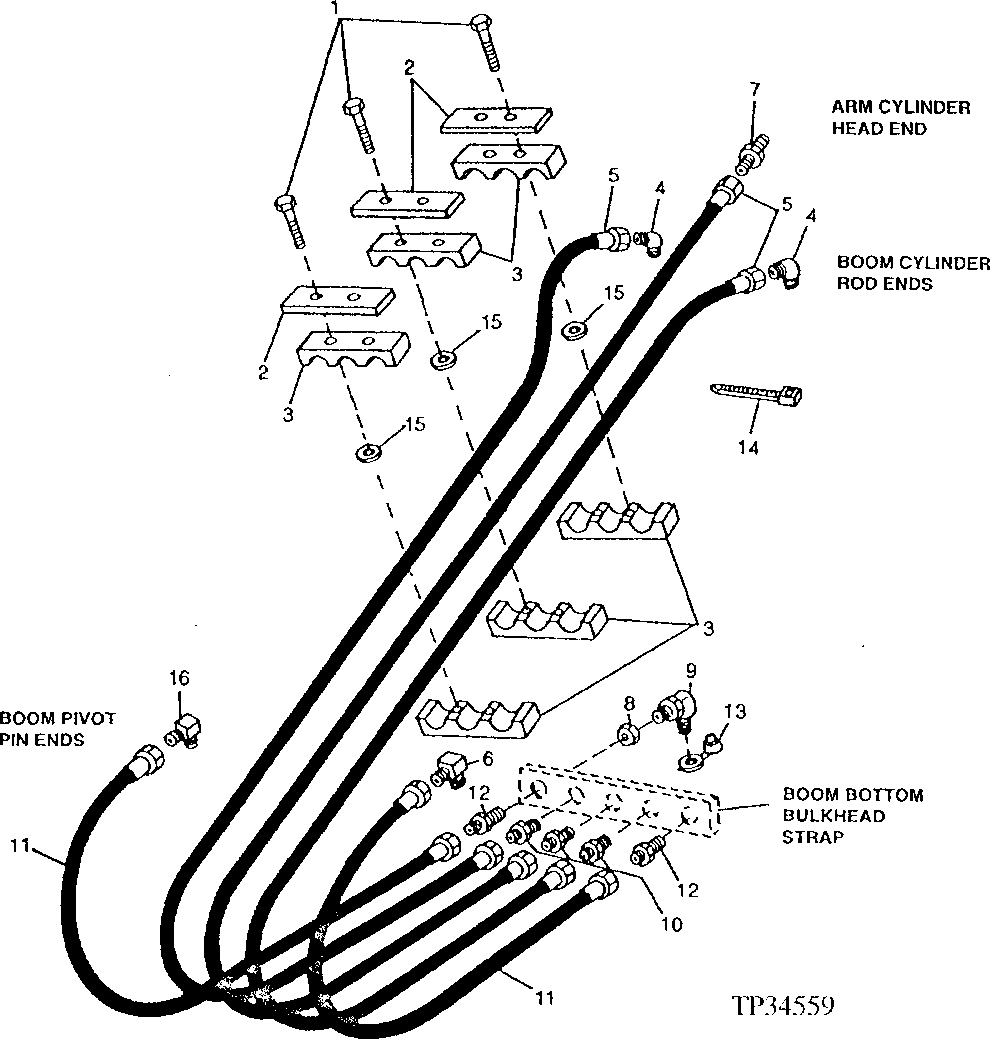

Запчасти John Deere 90ELC 131 - CENTRAL LUBRICATION LINES 1370 Lubrication Systems

1

19M7513

Cap Screw

M8 X 30 (SUB FOR 19M7288)

6шт.

2

R67195

Strap

3шт.

3

R67196

Clamp

6шт.

4

T107303

Elbow Fitting

(SUB FOR T28850)

2шт.

5

AT169683

Hydraulic Hose

(SUB FOR AT73737, THIS APPLICATION)

3шт.

6

T107378

Elbow Fitting

2шт.

7

X4-4FTX-S

Adapter Fitting

(SUB FOR T36253)

1шт.

8

E12379

Nut

5шт.

9

JD7797

Lubrication Fitting

(SUB FOR JD7806, THIS APPLICATION)

5шт.

10

T104352

Adapter Fitting

3шт.

11

AT112769

Hydraulic Hose

2шт.

12

T75644

Adapter Fitting

2шт.

13

Cap

( T120609 NO LONGER REQUIRED)

5шт.

14

R44302

Tie Band

LUBRICATION HOSES TO BOOM HYDRAULIC TUBES AND ARM CYLINDER HYDRAULIC HOSE

3шт.

15

24H1652

Washer

13/32" X 11/16" X 7/64"

6шт.

16

T107378

Elbow Fitting

1шт.
