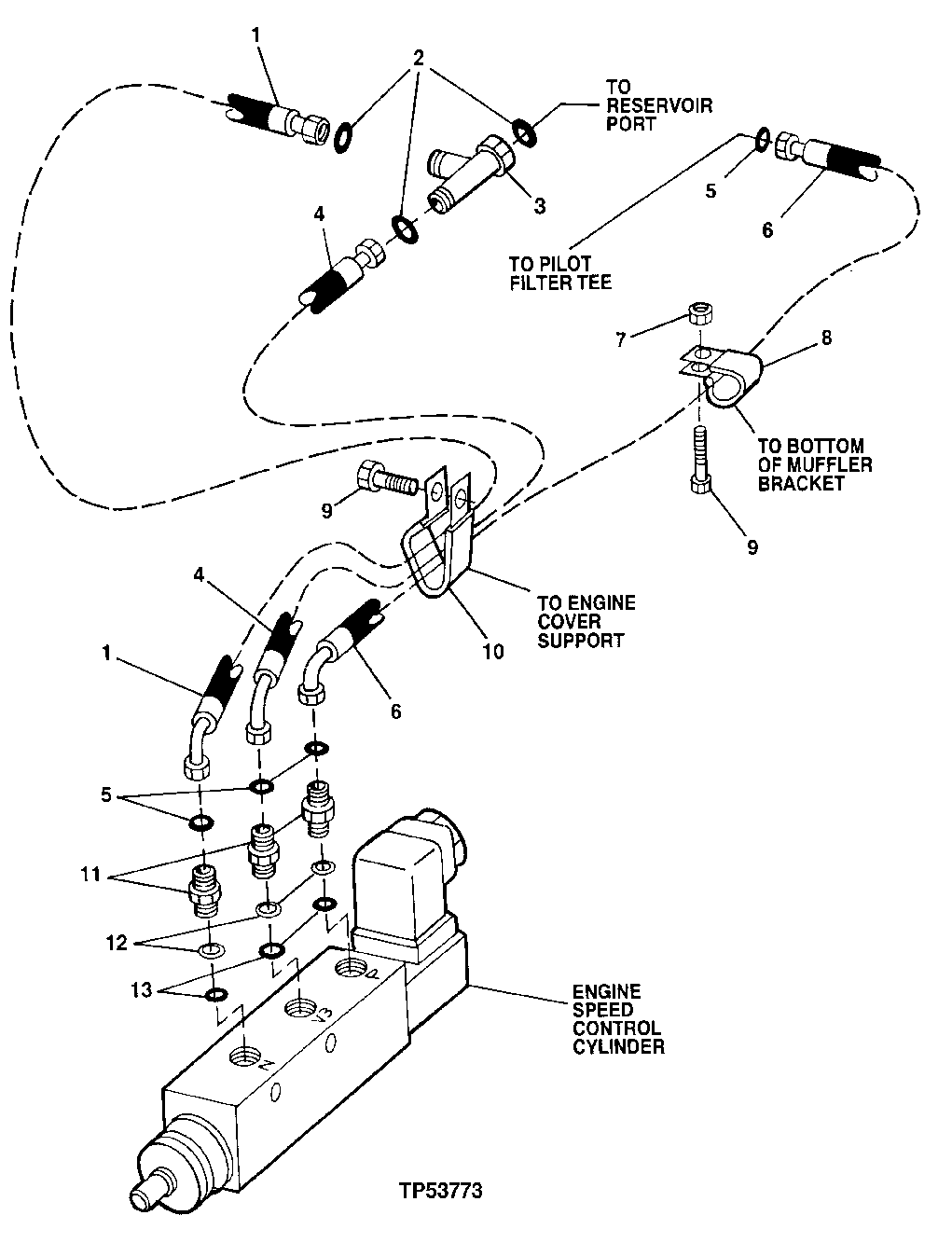

Запчасти John Deere 90ELC 119 - ENGINE SPEED CONTROL HYDRAULIC LINES AND FITTINGS (559603 - ) 0570 Electronics

1

AT179355

Hydraulic Hose

17.4752" X 1631 mm (64-1/4") X 13/16"

1шт.

2

T77857

O-Ring

3шт.

3

38H1031

Tee Fitting

1шт.

4

AT178085

Hydraulic Hose

17.4752" X 2057 mm (81") X 17.4752" (SUB FOR AT84776, THIS APPLICATION)

1шт.

5

T77613

O-Ring

7шт.

6

AT179355

Hydraulic Hose

17.4752" X 1631 mm (64-1/4") X 13/16"

1шт.

7

14M7176

Lock Nut

M30

1шт.

8

H75541

Clamp

1шт.

9

19M7784

Screw

M10 X 20

2шт.

10

AH77869

Clip

1шт.

11

T104327

Adapter Fitting

3шт.

12

51M4236

Sealing Ring

3шт.

13

T55758

O-Ring

10.820 X 1.270 mm (0.426" X 0.050")

3шт.
