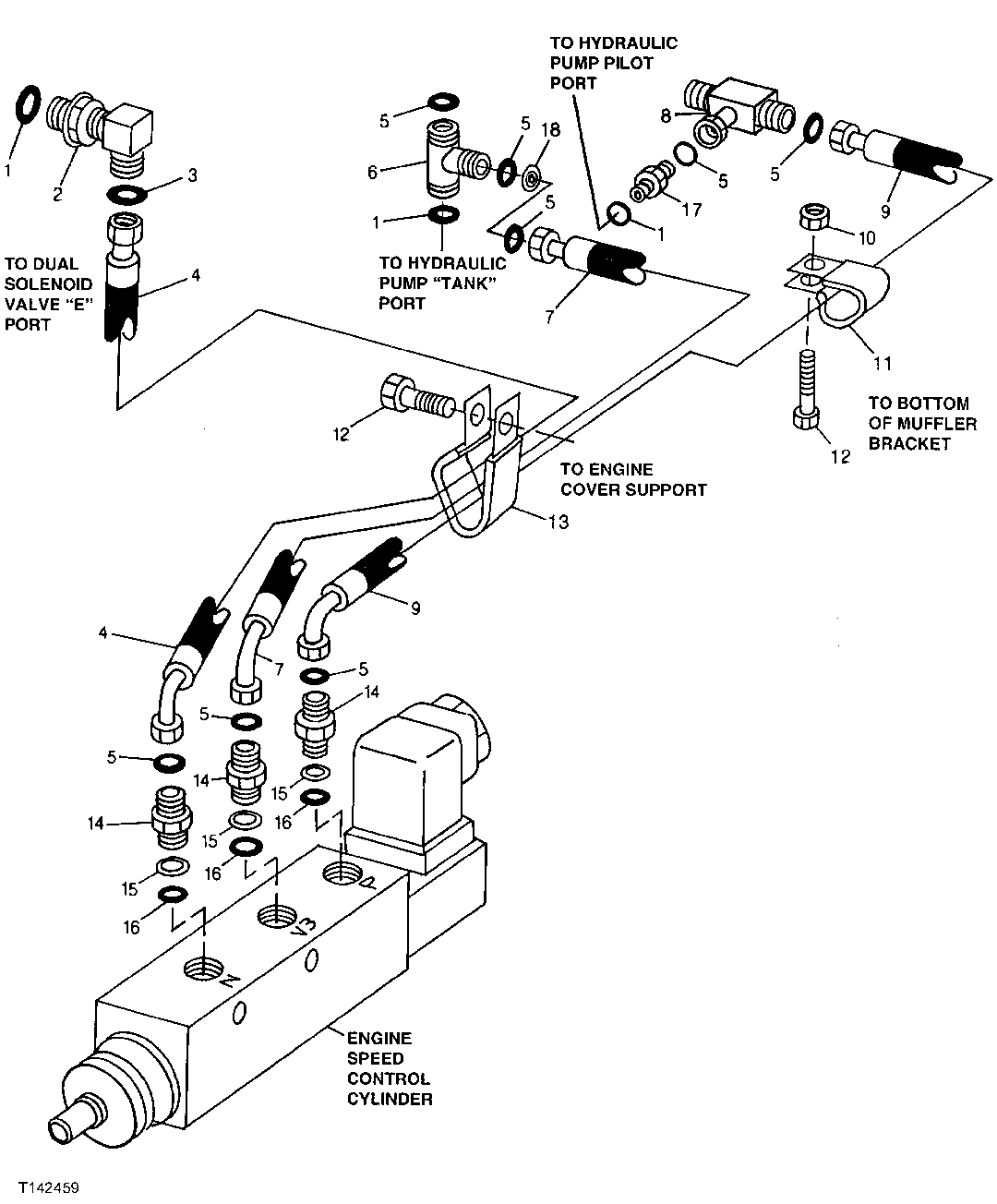

Запчасти John Deere 90ELC 118 - ENGINE SPEED CONTROL HYDRAULIC LINES AND FITTINGS ( - 559602) 0570 Electronics

1

R26448

O-Ring

3шт.

2

38H1009

Elbow Fitting

1шт.

3

T77814

O-Ring

1шт.

4

AT130181

Hydraulic Hose

17.4752" X 1160 mm (45-3/4") X 17.475 2" (SUB FOR AT84776, THIS APPLICATION)

1шт.

5

T77613

O-Ring

8шт.

6

38H1023

Tee Fitting

1шт.

7

AT147441

Hydraulic Hose

9/16" X 2439 mm (96") X 17.4752"

1шт.

AT178085

Hydraulic Hose

17.4752" X 2057 mm (81") X 17.4752"

1шт.

8

38H1038

Tee Fitting

1шт.

9

AT130181

Hydraulic Hose

17.4752" X 1160 mm (45-3/4") X 17.4752"

1шт.

10

14M7176

Lock Nut

M30

1шт.

11

H75541

Clamp

1шт.

12

19M7784

Screw

M10 X 20

2шт.

13

AH77869

Clip

1шт.

14

T104327

Adapter Fitting

3шт.

15

51M4236

Sealing Ring

3шт.

16

T55758

O-Ring

3шт.

17

38H1160

Adapter Fitting

1шт.

18

T155574

Orifice

2шт.
