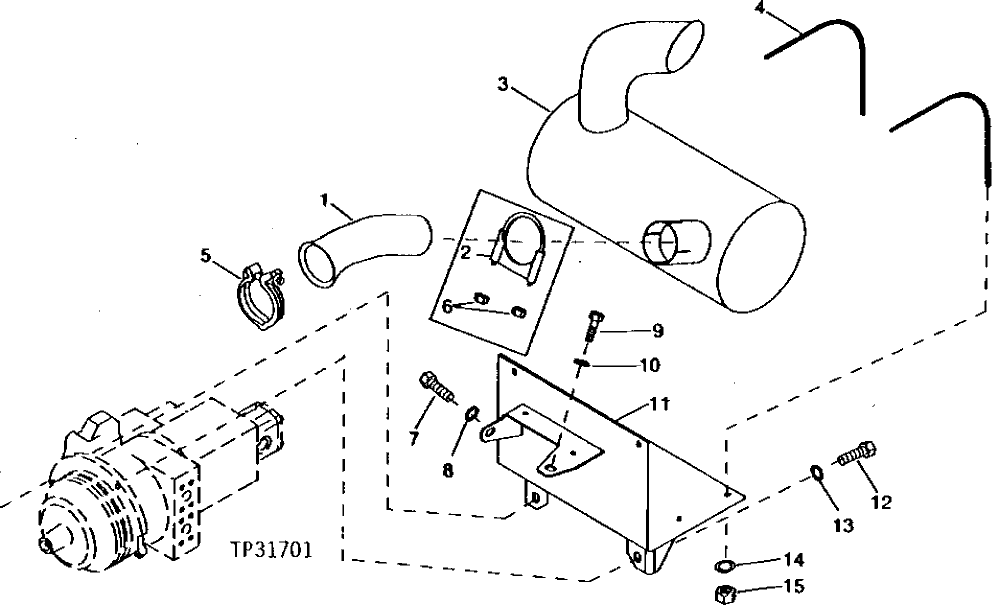

Запчасти John Deere 90ELC 113 - MUFFLER AND MOUNTING BRACKET 0530 External Exhaust Systems

1

T138644

Muffler Extension

1шт.

2

AT147401

Clamp

1шт.

3

AT147314

Muffler

1шт.

4

T138642

Hook Bolt

2шт.

5

RE70212

Clamp

(SUB FOR AT103553 OR RE40048)

1шт.

6

E55662

Flange Nut

2шт.

7

19H3483

Cap Screw

3/8" X 1-1/8" HS, SAE 8, 3/8" X 1"

1шт.

8

24H1311

Washer

13/32" X 1-1/4" X 0.220"

1шт.

9

19H2898

Cap Screw

1/2" X 1-1/4"

1шт.

10

24H1330

Washer

15/32" X 1-3/8" X 7/64"

1шт.

11

Support

(SUB FOR AT147313 ) (SUB AT179741 ) (A LSO ORDER (2) 28H3383 AND (2) 19H3585)

1шт.

AT179741

Support

1шт.

12

19H2633

Cap Screw

3/8" X 1-1/2"

2шт.

28H3383

Bushing

0.493" X 0.675" X 3/4" (NOT ILLUSTRATED)

2шт.

19M7935

Cap Screw

M10 X 55

2шт.

13

24H1886

Washer

15/32" X 1-1/8" X 0.180"

2шт.

14

24M7298

Washer

8.400 X 25 X 2 mm

4шт.

15

14M7166

Lock Nut

M8

4шт.
