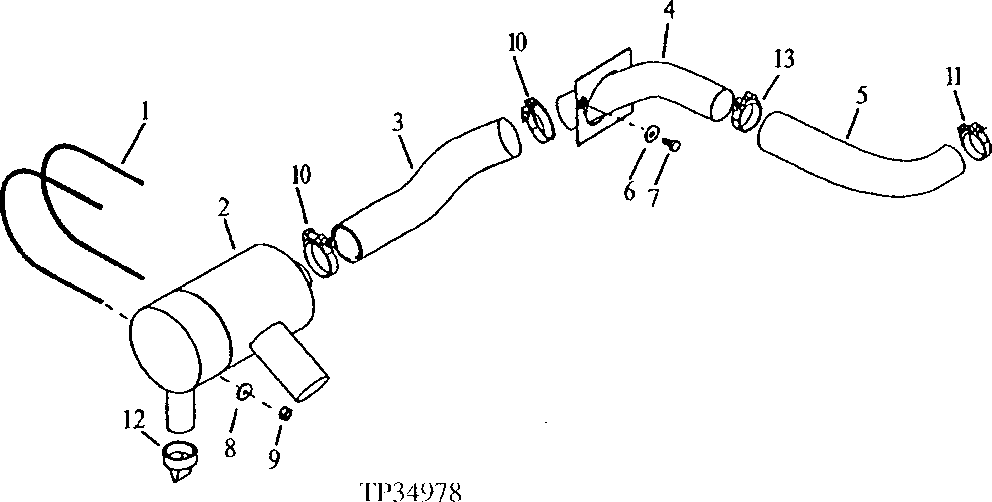

Запчасти John Deere 90ELC 112 - AIR CLEANER MOUNTING BRACKETS AND HOSES 0520 Intake System

1

T138685

U-Bolt

2шт.

2

AT225535

Filter

(SUB FOR AT115660)

1шт.

3

T139491

Suction Hose

1шт.

T161146

Suction Hose

1шт.

4

AT147494

Air Duct

1шт.

5

T138684

Suction Hose

1шт.

T161145

Suction Hose

1шт.

6

24H1330

Washer

15/32" X 1-3/8" X 7/64"

2шт.

7

19M7784

Screw

M10 X 20

2шт.

8

24M7298

Washer

8.400 X 25 X 2 mm (FOUR ON EACH SIDE OF BAFFLE)

8шт.

9

14M7166

Lock Nut

M8 (FOUR ON EACH SIDE OF BAFFLE)

8шт.

10

AT56657

Hose Clamp

3шт.

11

AT50923

Hose Clamp

1шт.

12

T23263

Valve

UNLOADING

1шт.

13

AT56657

Hose Clamp

1шт.
