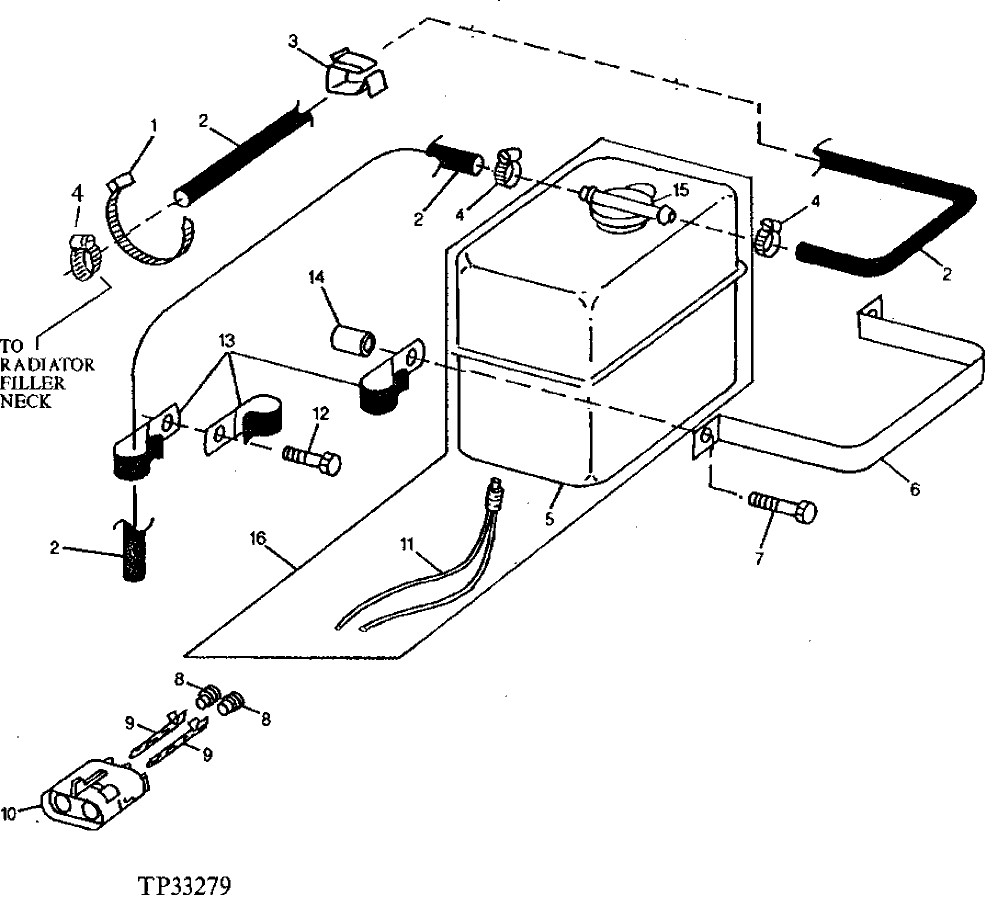

Запчасти John Deere 90ELC 107 - ENGINE COOLANT RECOVERY SYSTEM ( - 551585) 0510 COOLING SYSTEMS

1

R44302

Tie Band

3шт.

2

Hose

(MAKE FROM T119816 BULK MATERIAL, CUT TO LENGTH)

ARшт.

Hose

(PLACED ON BENDING LOOP OF HOSE T O PREVENT KINKING) (MAKE FROM T14 8099 BULK MATERIAL, CUT TO LENGTH)

ARшт.

3

T119748

Clip

4шт.

4

R56101

Clip

3шт.

5

Tank

(SUB AT147301)

1шт.

6

4180555

Bracket

(SUB FOR TH108579)

1шт.

7

19M7658

Cap Screw

M10 X 50

2шт.

8

R78059

Electrical Connector Assy

2шт.

9

R78058

Electrical Connector Assy

2шт.

10

R78053

Electrical Connector Assy

1шт.

11

4153251

Sender

(SUB FOR TH102932)

1шт.

12

19M7784

Screw

M10 X 20

2шт.

13

T19935

Clamp

6шт.

14

28H1497

Bushing

0.493" X 0.675" X 1-1/2"

2шт.

15

4396809

Cap

(SUB FOR TH102933)

1шт.

16

4206452

Tank

(SUB FOR AT147301)

1шт.
