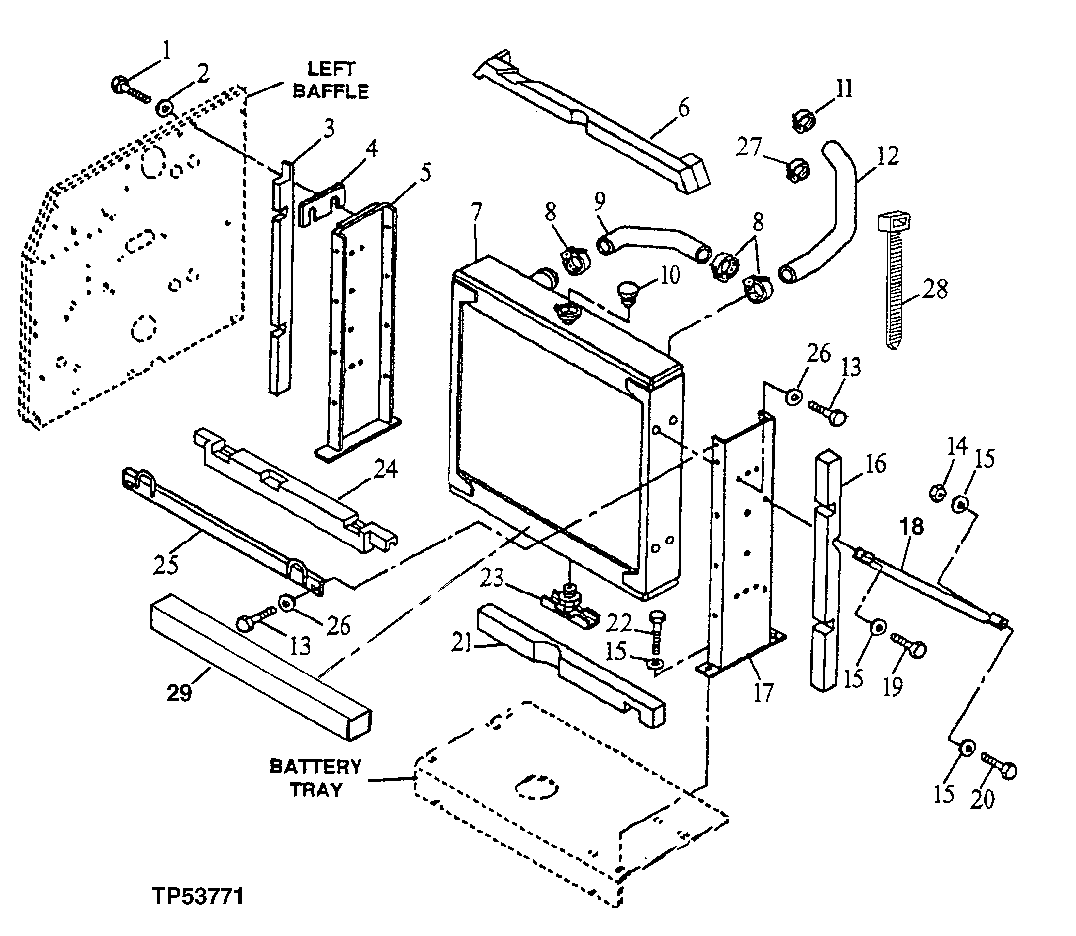

Запчасти John Deere 90ELC 105 - RADIATOR, RADIATOR SUPPORTS, RADIATOR HOSES AND RADIATOR BAFFLES ( - 559602) 0510 COOLING SYSTEMS

1

19M7786

Screw

M10 X 30

2шт.

2

24H1330

Washer

15/32" X 1-3/8" X 7/64"

2шт.

3

T139618

Isolator

1шт.

4

T124477

Strap

2шт.

5

AT147414

Support

1шт.

6

T139617

Isolator

1шт.

7

AT179796

Radiator

(SUB FOR AT168893)(ALSO ORDER AT173610)

1шт.

8

AR21999

Hose Clamp

3шт.

9

T138554

Radiator Hose

1шт.

10

AT173610

Filler Cap

1шт.

11

AR40418

Hose Clamp

(END OF RADIATOR HOSE TO WATER PUMP)

1шт.

12

T138553

Radiator Hose

1шт.

T139632

Radiator Hose

USE WITH AIR CONDITIONING (NOT ILLUSTRATED)

1шт.

13

19M7784

Screw

M10 X 20

10шт.

14

14M7401

Lock Nut

M12

1шт.

15

T29342

Washer

7шт.

16

T139619

Isolator

1шт.

17

AT147413

Support

1шт.

18

T138567

Support

1шт.

19

19M7788

Screw

M12 X 25

1шт.

20

19M7361

Cap Screw

M12 X 50

1шт.

21

T139620

Isolator

1шт.

22

19M7790

Screw

M12 X 35

4шт.

23

AT13740

Drain Valve

1шт.

24

T159033

Isolator

(SUB FOR T139621 ) (ALSO ORDER T159034)

1шт.

T159034

Isolator

(SUB FOR T139621 ) (ALSO ORDER T159033)

1шт.

25

AT147442

Angle

1шт.

26

24M7296

Washer

10.500 X 30 X 2.500 mm

10шт.

27

AR21999

Hose Clamp

(RADIATOR LOWER HOSE T O UPPER FAN GUARD HALF)

1шт.

28

H77698

Tie Band

(LOWER RADIATOR HOSE T O RADIATOR SUPPORT ROD)

1шт.

29

T157675

Pad

1шт.
