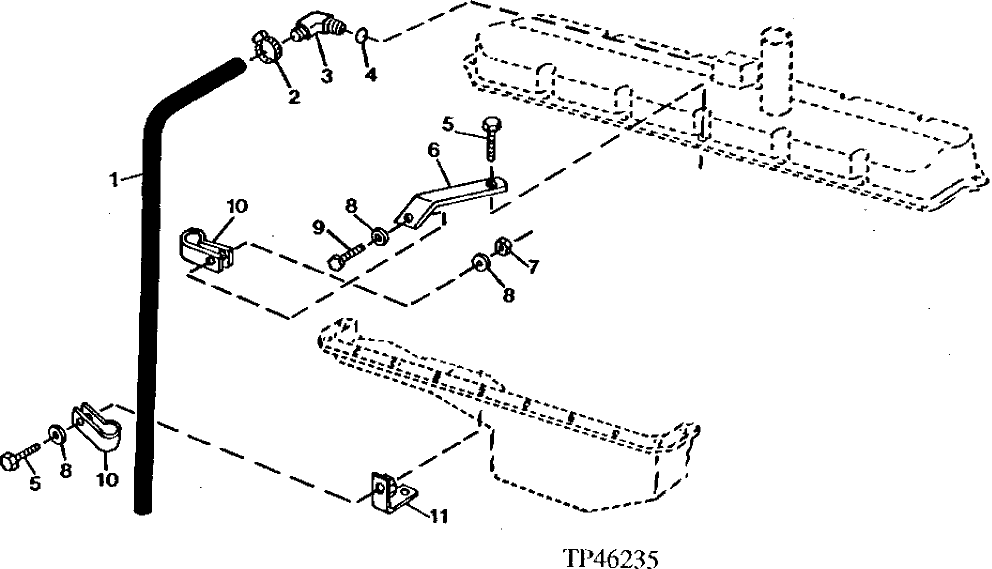

Запчасти John Deere 90ELC 50 - Engine Ventilator Tube (469373 - 704568) 0408 Ventilating System 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

H36031

Hose

1шт.

2

AR21839

Clamp

2шт.

3

R92154

Elbow Fitting

1шт.

4

R56463

O-Ring

1шт.

5

19H2676

Cap Screw

3/8" X 1"

1шт.

R122618

Screw

(USE WITH AT12875)

1шт.

19M7783

Screw

M10 X 16 (USE WITH RE504036)

1шт.

6

R109590

Strap

1шт.

7

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H1076, THIS APPLICATION)

1шт.

8

24M7096

Washer

10.500 X 18 X 1.600 mm

ARшт.

9

19H3239

Cap Screw

3/8" X 1-1/4"

1шт.

10

R72659

Clamp

2шт.

11

AT12875

Bracket

1шт.

RE504036

Bracket

1шт.
