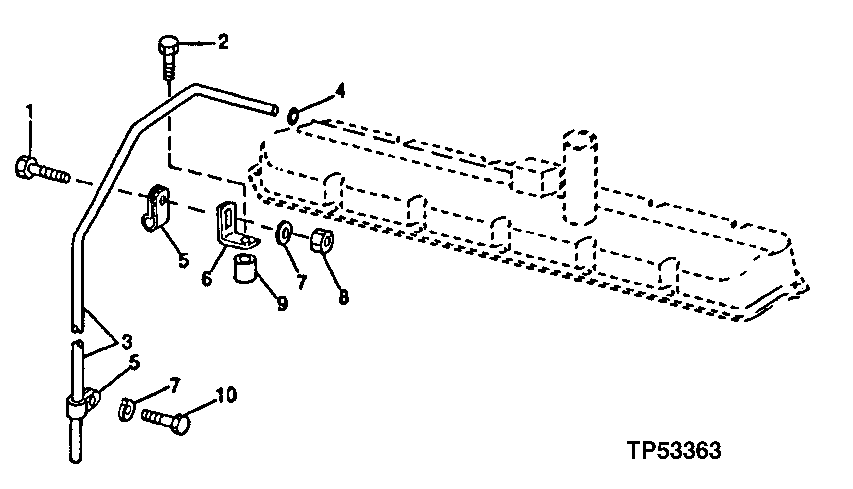

Запчасти John Deere 90ELC 49 - Engine Ventilator Tube ( - 469372) 0408 Ventilating System 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

19H2284

Cap Screw

3/8" X 7/8"

1шт.

2

19H2676

Cap Screw

3/8" X 1"

1шт.

3

R107650

Tube

1шт.

4

R56463

O-Ring

1шт.

5

R40791

Clamp

2шт.

6

R73975

Bracket

1шт.

7

12H304

Lock Washer

3/8"

1шт.

8

14H812

Nut

3/8"

1шт.

9

28H860

Washer

0.423" X 0.675" X 3/8"

1шт.

10

T56055

Screw

1шт.
