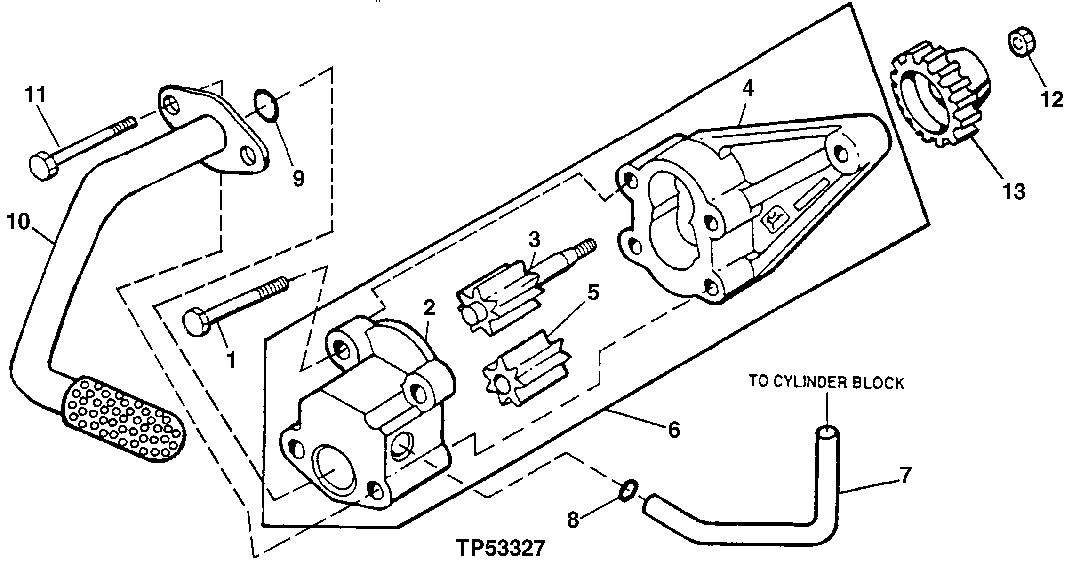

Запчасти John Deere 90ELC 48 - Engine Oil Pump (704569 - ) 0407 OILING SYSTEM 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

19M8987

Screw

M8 X 65

2шт.

2

Cover

1шт.

3

Gear

1шт.

4

Housing

1шт.

5

Gear

1шт.

6

RE504914

Oil Pump

(MARKED R502687) (SUB FOR RE502269 ) (MARKED R123179) (SUB FOR RE70153 MARK ED R123179 AND RE59582 MARKED R123179)

1шт.

SE501814

Oil Pump Reman

(REMAN FOR RE504914)

1шт.

7

R121376

Structural Tube

1шт.

8

R97185

O-Ring

1шт.

9

R61871

O-Ring

1шт.

10

RE69898

Oil Pump Intake

1шт.

11

19M8986

Screw

M8 X 100

2шт.

12

14M7066

Nut

M12

1шт.

13

R120638

Gear

(30 TEETH)

1шт.
