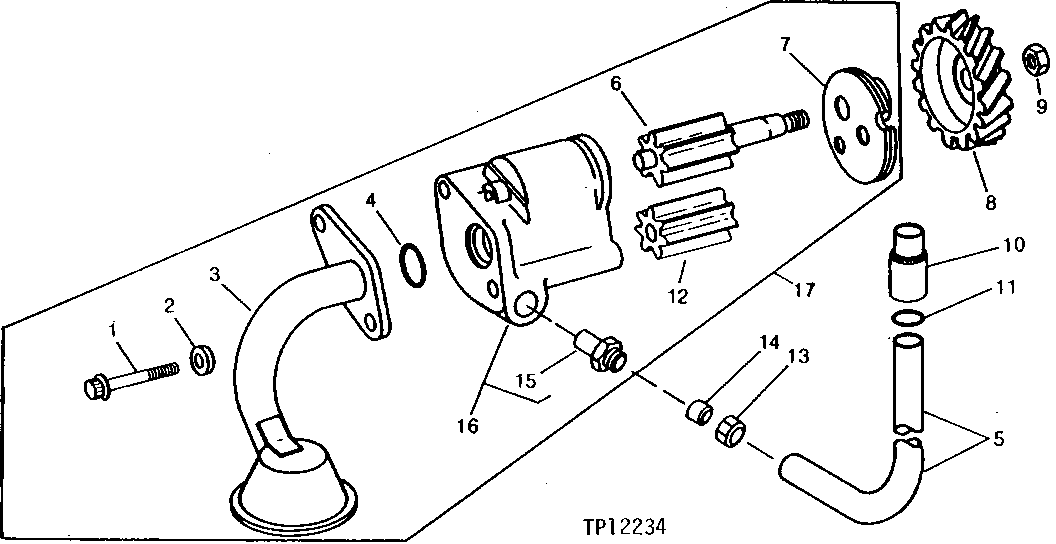

Запчасти John Deere 90ELC 47 - Engine Oil Pump ( - 704568) 0407 OILING SYSTEM 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

R116424

Screw

(SUB FOR R74552, THIS APPLICA TION ) (ALSO ORDER (2) R74553)

2шт.

2

R74553

Washer

(USE WITH R116424)

2шт.

3

RE56389

Oil Pump Intake

(SUB FOR RE20853)

1шт.

4

R61871

O-Ring

1шт.

5

R112867

Oil Tube

1шт.

6

AR85788

Shaft

(7 TEETH) (ALSO ORDER R66177)

1шт.

7

R54632

Cover

1шт.

8

T20298

Gear

(33 TEETH)

1шт.

9

14H826

Nut

1/2"

1шт.

10

R54815

Fitting

1шт.

R115390

Bushing

1шт.

11

R80632

O-Ring

(SUB FOR R77052)

ARшт.

R97185

O-Ring

1шт.

12

R66177

Gear

(7 TEETH) (ALSO ORDER AR85788)

1шт.

13

R79562

Fitting

1шт.

14

R79563

Sleeve

1шт.

15

R79560

Adapter Fitting

1шт.

16

RE15490

Housing

(MARKED R54629)

1шт.

17

AR79466

Oil Pump

1шт.
