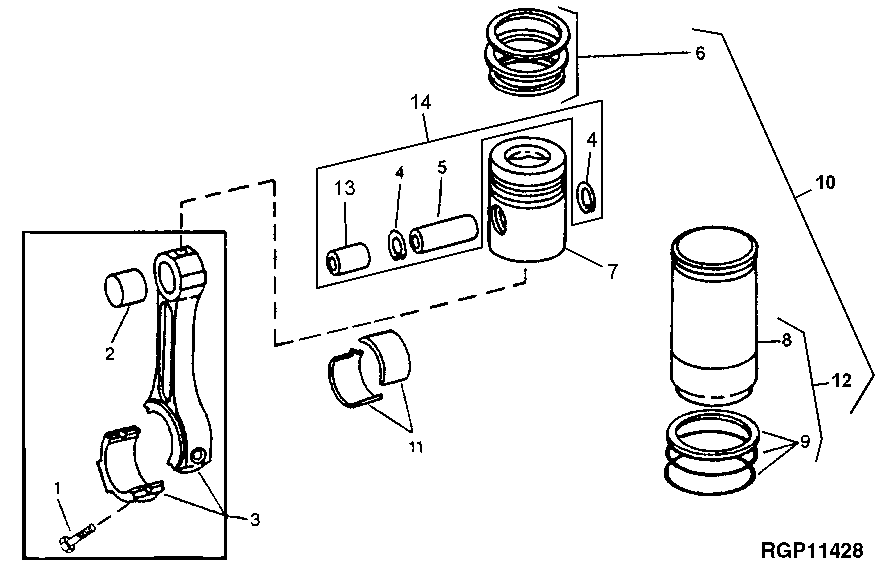

Запчасти John Deere 90ELC 30 - CONNECTING ROD, PISTON, RINGS AND LINER (704569 - ) 0403 Connecting Rods And Pistons 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

R74195

Screw

12шт.

2

Bushing

( R56186 NO LONGER AVAILABLE)

6шт.

3

RE53716

Connecting Rod

(MARKED R116851 ) (SUB FOR AR66400 ) (MARKED R56187)

6шт.

SE500746

Connecting Rod Reman

(REMAN FOR RE53716)

ARшт.

4

R54114

Snap Ring

12шт.

5

Pin

( R124230 NO LONGER AVAI LABLE, FURNISH RE63913)

6шт.

6

RE507852

Piston Ring Kit

(SUB FOR RE15674, RE48818, RE66820)

6шт.

7

Piston

( RE28920 NO LONGER AVAI LABLE, FURNISH RE53073)

6шт.

8

R121867

Cylinder Liner

(SUB FOR R80500 ) (SUB RE500024)

6шт.

9

AR65507

O-Ring Kit

6шт.

10

RE53073

Piston-Liner Kit

(SUB FOR RE28977)

6шт.

11

AR97517

Bearing

STANDARD (SET OF (2) R54801)

6шт.

Bearing

( AR97652 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE (SET OF (2) R73595)

6шт.

AR97653

Bearing

0.25 MM (.010") UNDERS IZE (SET OF (2) R73596)

6шт.

AR97654

Bearing

0.51 MM (.020") UNDERS IZE (SET OF (2) R73597)

6шт.

AR97655

Bearing

0.76 MM (.030") UNDERS IZE (SET OF (2) R73598)

6шт.

12

RE500024

Cylinder Liner

6шт.

13

Bushing

6шт.

14

RE63913

Pin Kit

6шт.
