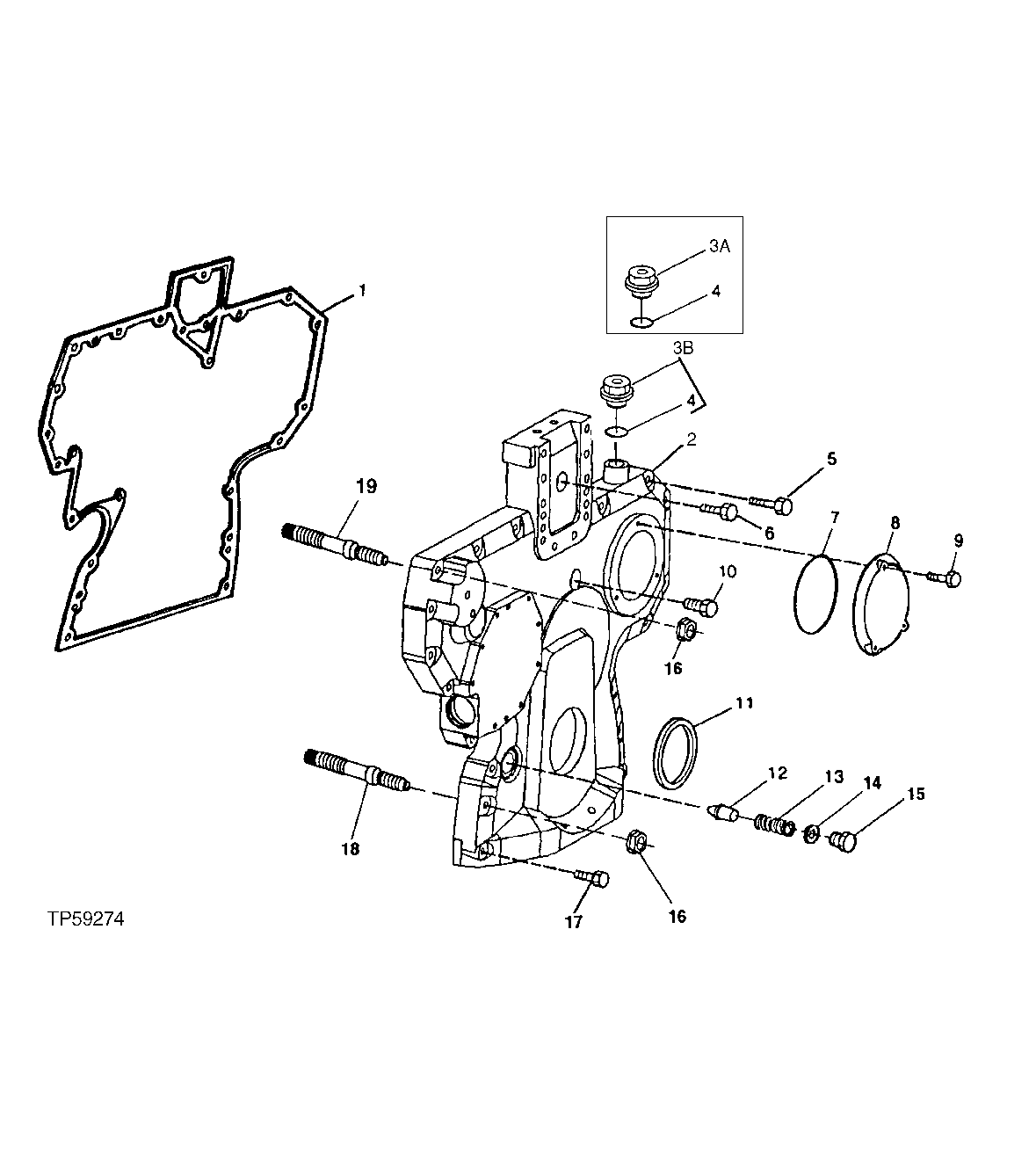

Запчасти John Deere 90ELC 28 - Timing Gear Cover (704569 - ) 0402 Camshaft And Valve Actuating Means 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

R136515

Gasket

(SUB FOR R134533)

1шт.

2

R501297

Cover

(SUB FOR R134530 ) (SU B R504724 AND RE515978)

1шт.

3A

R101085

Drain Plug

(SUB RE501938, THIS APPLICATION)

1шт.

3B

RE501938

Plug

1шт.

4

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

5

19M8317

Screw

M8 X 40

10шт.

RE67239

Screw

1шт.

6

19M8291

Screw

M8 X 35

1шт.

19M7801

Screw

M8 X 60

1шт.

7

R121424

O-Ring

1шт.

8

R121411

Cover

1шт.

9

19M7775

Screw

M6 X 16

3шт.

10

RE67239

Screw

(SUB FOR RE67240)

2шт.

11

RE516340

Seal Kit

(SUB FOR RE59810 ) (MARKED RE5 2346, RE505515)(FRONT OIL SEAL)

1шт.

12

R83169

Valve

1шт.

13

T27658

Spring

1шт.

14

A4827R

Washer

25.400 X 31.700 X 1.500 mm (1" X 1.248" X 0.059")

1шт.

15

T27657

Fitting Plug

1шт.

16

14M7296

Flange Nut

M10

6шт.

17

19M7979

Screw

M8 X 55

2шт.

18

R123584

Stud

4шт.

19

R134518

Stud

2шт.
