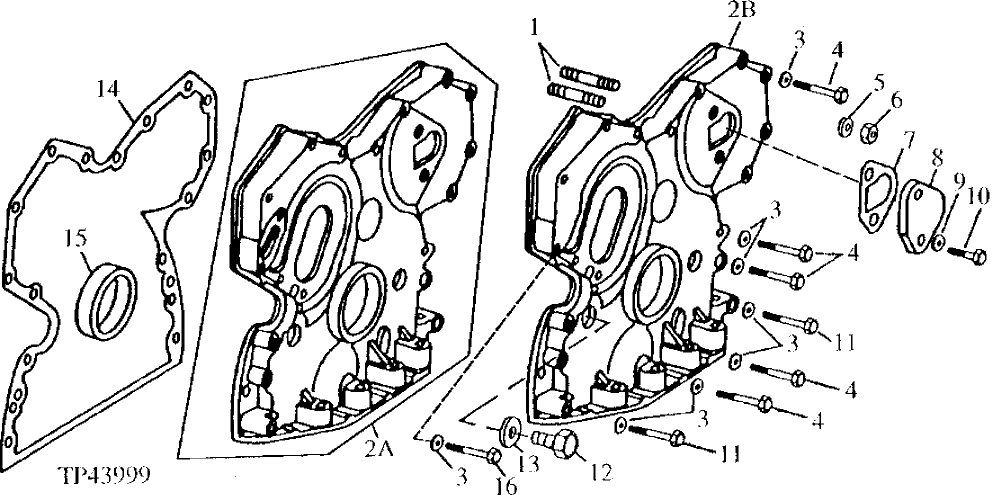

Запчасти John Deere 90ELC 27 - Timing Gear Cover ( - 704568) 0402 Camshaft And Valve Actuating Means 6068TDW07, 6068TDW56 6068TDW07, 6068TDW56

1

R122226

Stud

2шт.

2A

RE39252

Cover

WITH INSERTS

1шт.

2B

RE56443

Cover

1шт.

3

24M7106

Washer

10 X 18 X 2.500 mm

ARшт.

4

19H3408

Screw

3/8" X 1-3/4"

5шт.

19H3693

Screw

3/8" X 1-1/4"

5шт.

5

12H304

Lock Washer

3/8"

ARшт.

6

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H812, THIS APPLICATION)

2шт.

7

R125066

Gasket

(SUB FOR R97773)

1шт.

8

R113533

Cover

1шт.

9

12H324

Washer

3/8"

2шт.

10

T20166

Screw

2шт.

11

19H3733

Screw

3/8" X 2-1/2"

2шт.

12

T27657

Fitting Plug

1шт.

13

A4827R

Washer

1шт.

14

R126513

Gasket

(SUB FOR R97454, R119269 OR R121314)

1шт.

15

AR67942

Seal

1шт.

16

19H1726

Cap Screw

3/8" X 2-1/4" (SUB FOR 1 9H1819, THIS APPLICATION)

1шт.
