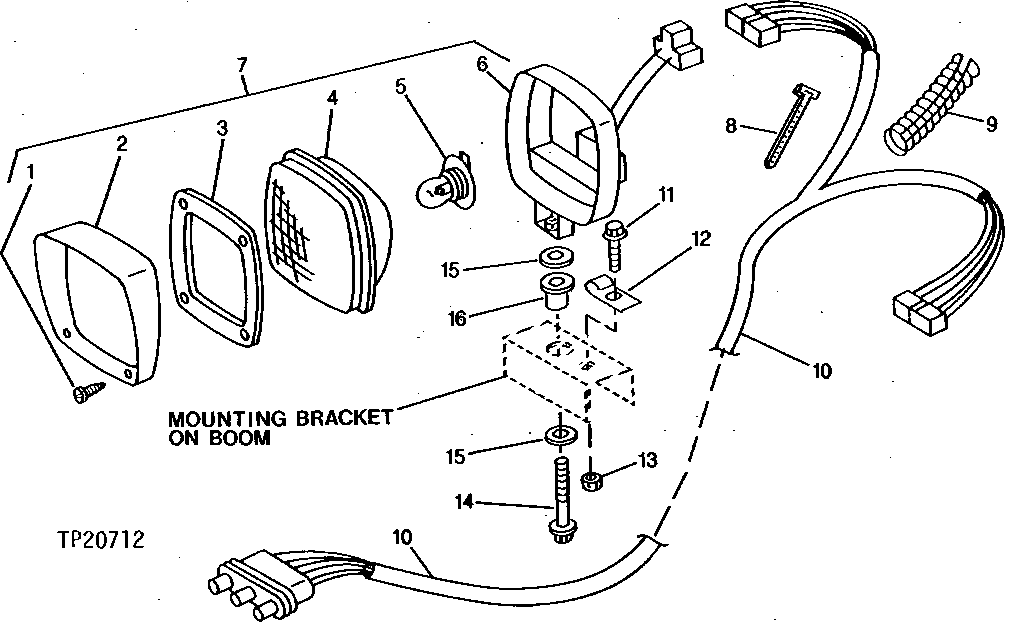

Запчасти John Deere 90D 1 - WORK LIGHT AND WIRING HARNESS 1673 - ELECTRICAL SYSTEMS 16

1

T80394

SCREW

4шт.

2

BEZEL

(SUB AT141789) (USE T80391 IF AVAILABLE)

1шт.

3

T80393

GASKET

1шт.

4

LAMP

(SUB AT141789) (USE T103705 IF AVAILABLE)

1шт.

5

AT135758

BULB

(SUB FOR 57M7127)

1шт.

6

BEZEL

(SUB AT105823)

1шт.

7

AT141789

FLOODLAMP

ASSEMBLY (SUB FOR AT105823) (USE AT105823 IF AVAILABLE)

2шт.

8

R44302

TIE BAND

12шт.

9

T101880

CONDUIT

4шт.

10

AT112483

WIRING HARNESS

1шт.

11

19M7783

SCREW

M10 X 16

2шт.

12

T19935

CLAMP

3шт.

13

14M7296

FLANGE NUT

M10

2шт.

14

19M7813

SCREW

M12 X 45

2шт.

15

WASHER

9/16" X 2" X 0.134" ( 24H1270 NO LONGER REQUIRED)

4шт.

16

T41770

ISOLATOR

2шт.
