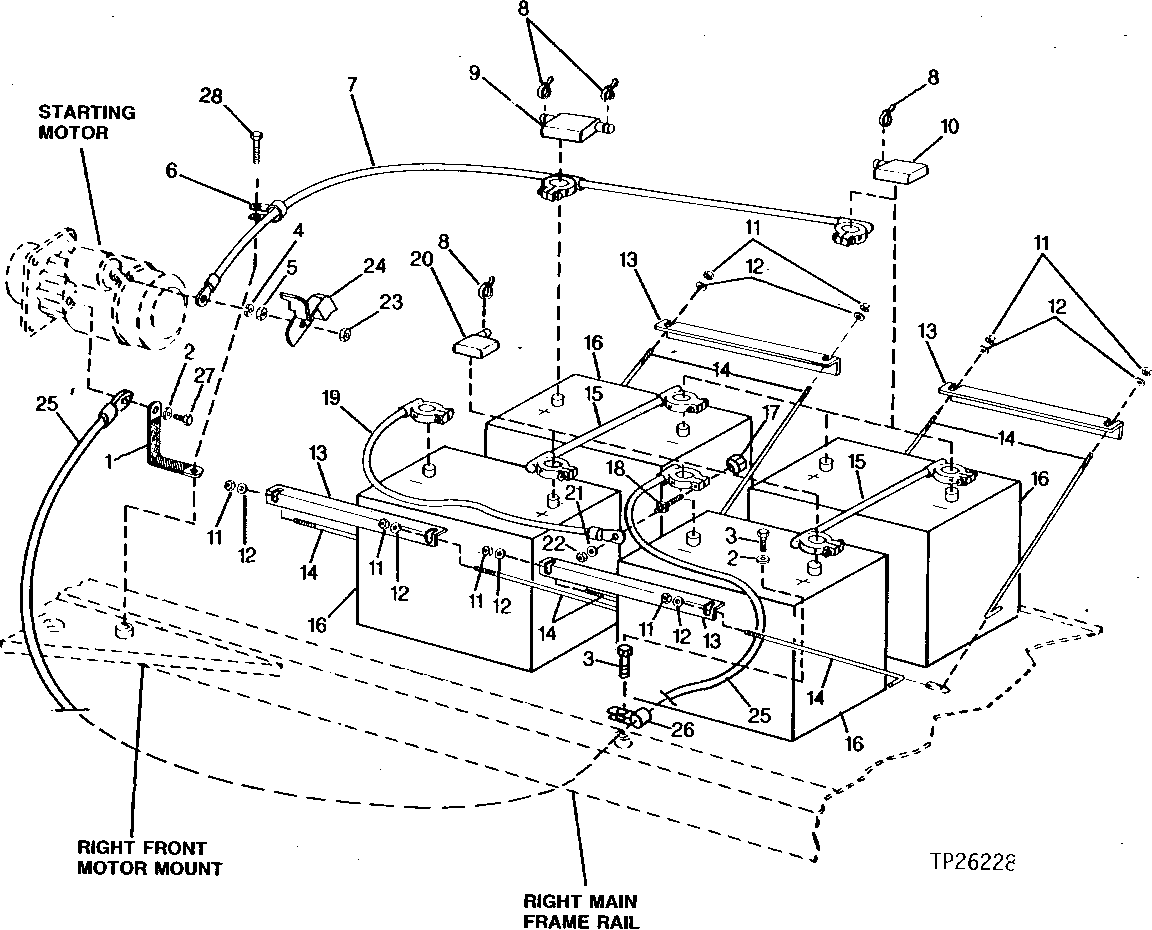

Запчасти John Deere 90D 4 - BATTERIES AND BATTERY CABLES 1671 - ELECTRICAL SYSTEMS 16

1

AT47069

GROUND CABLE

1шт.

2

12H304

LOCK WASHER

3/8", (GROUND STRAP TO STARTER CAP SCREW)

1шт.

3

19M7783

SCREW

M10 X 16, (NEGATIVE BATTERY CABLE TO FRAME)

1шт.

4

LOCK WASHER

( 12M7068 NO LONGER REQUIRED)

1шт.

5

NUT

(NO LONGER REQUIRED)

1шт.

6

T27550

CLIP

1шт.

7

AT107312

BATTERY BOOSTER CABLES

1шт.

8

R44302

TIE BAND

6шт.

9

T107116

COVER

1шт.

10

T107114

COVER

3шт.

11

14M7298

FLANGE NUT

M8

8шт.

12

24M7298

WASHER

8.400 X 25 X 2 MM, (SUB FOR 24M7207)

8шт.

13

T79470

ANGLE

4шт.

14

T79471

HOOK BOLT

8шт.

15

RE21742

BATTERY CABLE

2шт.

16

TY6128

DRY CHARGED BATTERY

4шт.

17

14H785

NUT

5/16"

1шт.

18

T31161

STUD

1шт.

19

AR45925

BATTERY CABLE

1шт.

20

T107115

COVER

2шт.

21

12H303

LOCK WASHER

5/16"

1шт.

22

14H785

NUT

5/16"

1шт.

23

14H1040

NUT

1/2"

1шт.

24

COVER

( R76139 NO LONGER AVAILABLE) (SUB RE39064)

1шт.

25

AT13528

BATTERY CABLE

1шт.

26

R46415

CLAMP

1шт.

27

19H2633

CAP SCREW

3/8" X 1-1/2"

1шт.

28

19M7784

SCREW

M10 X 20, (GROUND STRAP TO FRAME)

1шт.
