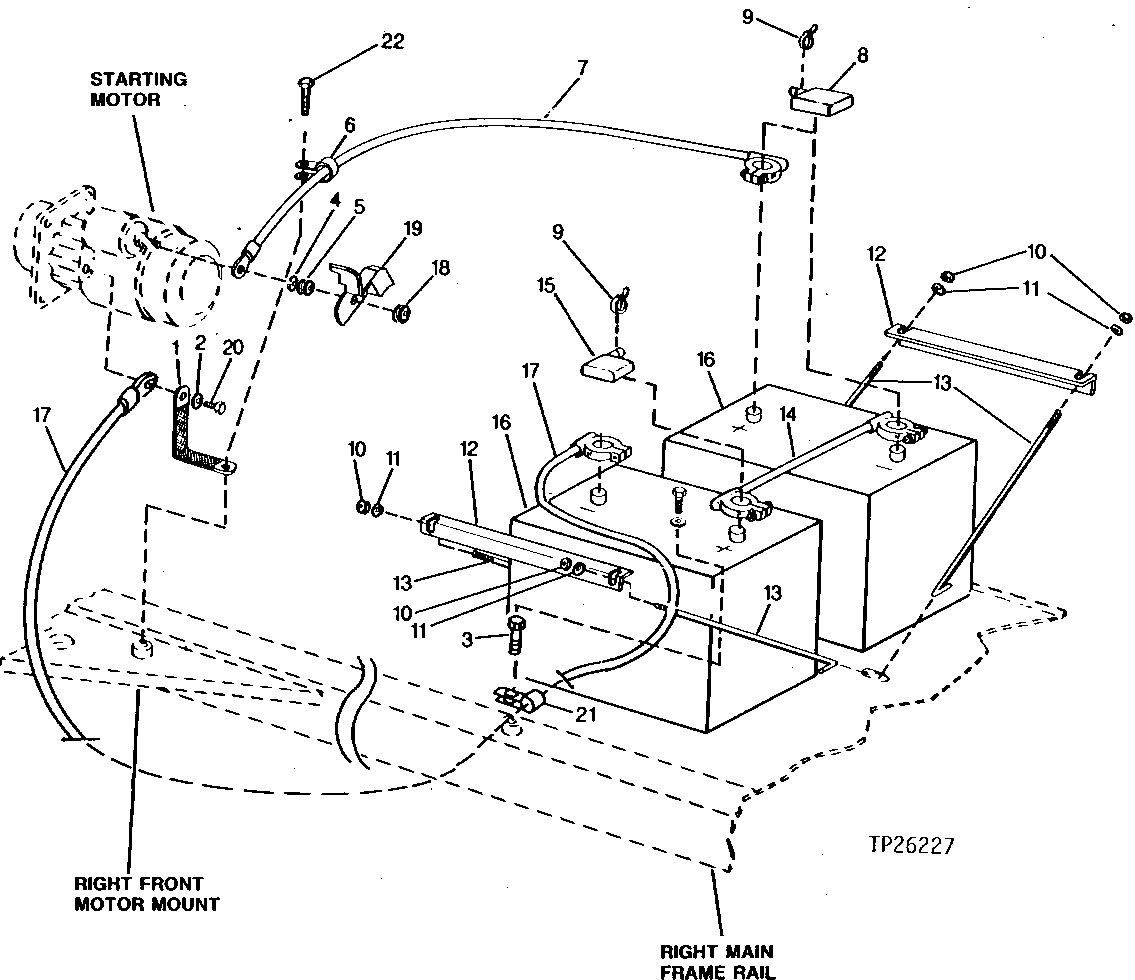

Запчасти John Deere 90D 2 - BATTERIES AND BATTERY CABLES 1671 - ELECTRICAL SYSTEMS 16

1

AT47069

GROUND CABLE

1шт.

2

12H304

LOCK WASHER

3/8"

1шт.

3

19M7783

SCREW

M10 X 16

1шт.

4

LOCK WASHER

( 12M7068 NO LONGER REQUIRED)

1шт.

5

NUT

(14H1040 NO LONGER REQUIRED)

1шт.

6

T27550

CLIP

1шт.

7

AT107311

BATTERY CABLE

1шт.

8

T107114

COVER

(ALSO ORDER (2) R44302)

2шт.

9

R44302

TIE BAND

3шт.

10

14M7298

FLANGE NUT

M8

4шт.

11

24M7298

WASHER

8.400 X 25 X 2 MM, (SUB FOR 24M7207)

4шт.

12

T79470

ANGLE

2шт.

13

T79471

HOOK BOLT

4шт.

14

RE21742

BATTERY CABLE

1шт.

15

T107115

COVER

1шт.

16

TY6127

DRY CHARGED BATTERY

(SUB FOR AT102967)

2шт.

17

AT13528

BATTERY CABLE

1шт.

18

14H1040

NUT

1/2"

1шт.

19

COVER

( R76139 NO LONGER AVAILABLE) (SUB RE39064)

1шт.

20

19H2633

CAP SCREW

3/8" X 1-1/2"

1шт.

21

R46415

CLAMP

1шт.

22

19M7784

SCREW

M10 X 20

1шт.
