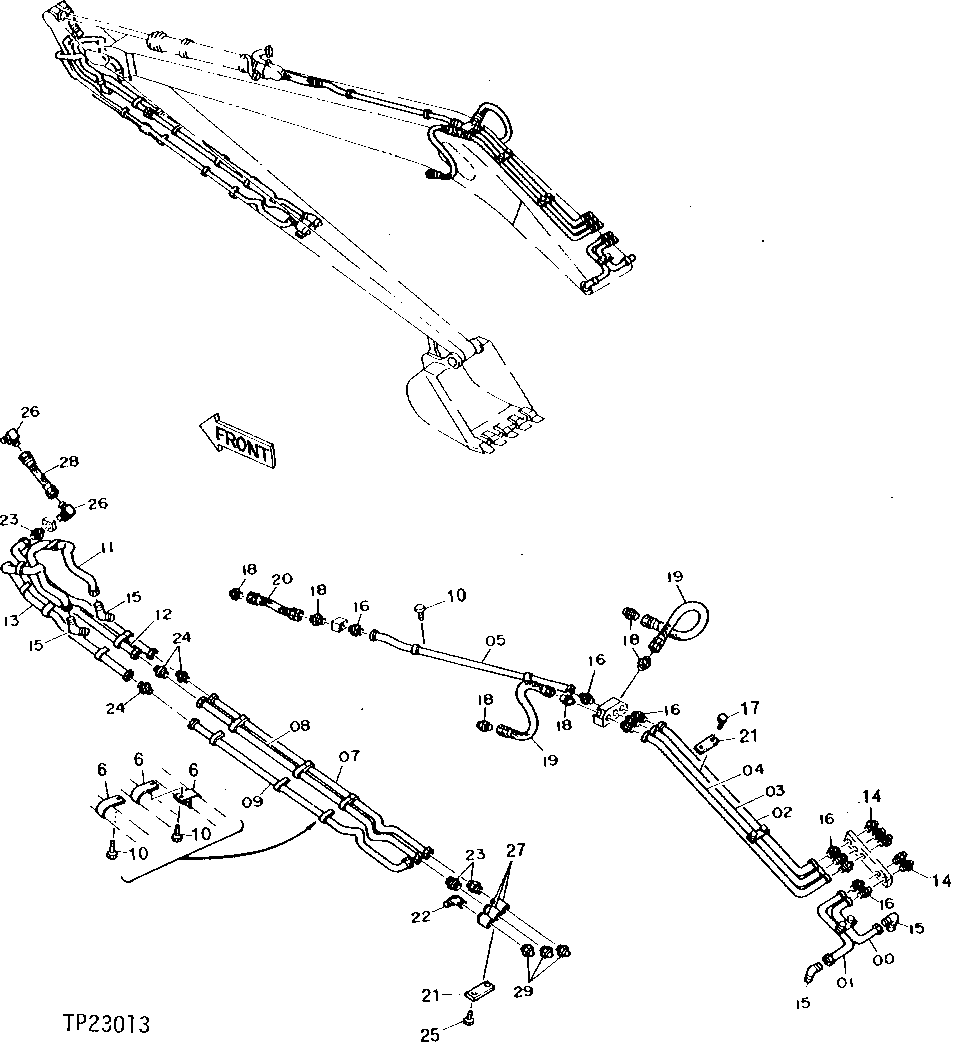

Запчасти John Deere 90D 4 - SUPER LONG FRONT ARM AND BOOM CENTRAL LUBRICATION LINES 1370 - MISCELLANEOUS VEHICLE 13

0

4181139

TUBE

(SUB FOR AT120775)

1шт.

1

4181140

TUBE

(SUB FOR AT120776)

1шт.

2

3039236

TUBE

(SUB FOR AT120777)

1шт.

3

3039235

TUBE

(SUB FOR AT120778)

1шт.

4

3039234

TUBE

(SUB FOR AT120779)

1шт.

5

4207508

TUBE

(SUB FOR AT120780)

1шт.

6

TH101388

CLIP

22шт.

7

3035725

TUBE

(SUB FOR AT120781)

1шт.

8

3035724

OIL LINE

(SUB FOR AT120782)

1шт.

9

3035723

TUBE

(SUB FOR AT120783)

1шт.

10

19M7300

CAP SCREW

M6 X 10

16шт.

11

3039233

TUBE

(SUB FOR AT120784)

1шт.

12

3039231

TUBE

(SUB FOR AT120785)

1шт.

13

3039232

TUBE

(SUB FOR AT120786)

1шт.

14

TH100364

LUBRICATION FITTING

(SUB JD7769)

5шт.

JD7769

LUBRICATION FITTING

5шт.

15

4130174

FITTING

(SUB FOR TH103262)

4шт.

16

4130169

FITTING

(SUB FOR TH101391)

10шт.

17

19M7662

CAP SCREW

M10 X 30

6шт.

18

X4-4FTX-S

ADAPTER FITTING

(SUB FOR X0103-4-4) (SUB FOR TH100963)

6шт.

19

AE42718

HYDRAULIC HOSE

(SUB FOR TH109844)

2шт.

20

AT120787

HYDRAULIC HOSE - FABRICATE

1шт.

21

4054024

STRAP

(SUB FOR TH100363)

4шт.

22

4130175

FITTING

(SUB FOR TH101392)

1шт.

23

4130169

FITTING

(SUB FOR TH101391)

3шт.

24

Z32962

FITTING

(SUB FOR T115094)

3шт.

25

19M7358

CAP SCREW

M10 X 40

2шт.

26

4154656

ELBOW FITTING

(SUB FOR TH101588)

2шт.

27

4060162

ADAPTER FITTING

(SUB FOR T115095)

3шт.

28

AT120788

HOSE

1шт.

29

T116334

LUBRICATION FITTING

(USE IF AVAILABLE) (SUB FOR TH100075)

3шт.

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

3шт.
