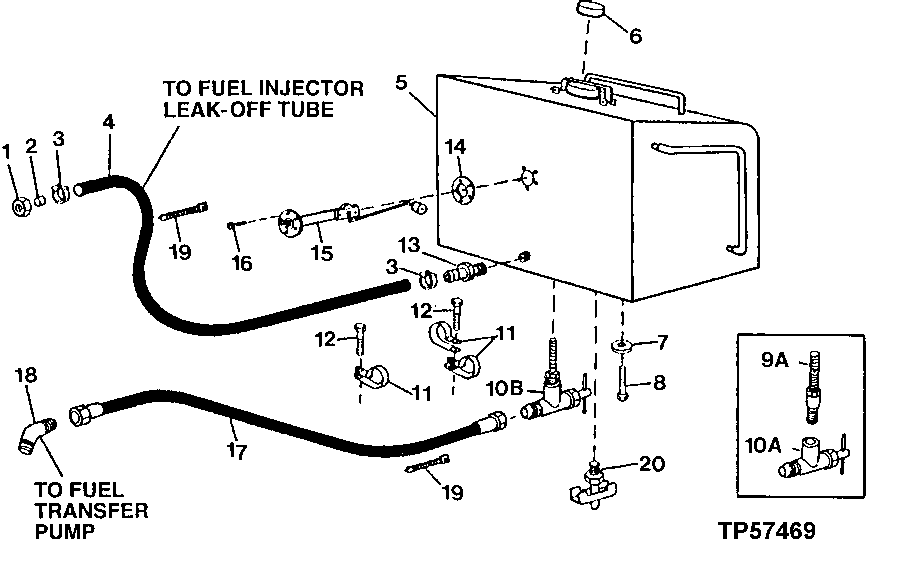

Запчасти John Deere 90D 2 - FUEL TANK AND FUEL HOSES 560 - ENGINE AUXILIARY SYSTEMS 5

1

R51937

TUBE NUT

1шт.

2

R51936

SEALING WASHER

1шт.

3

TY22462

CLAMP

(SUB FOR AR48236)

2шт.

4

TY22559

BULK HOSE

(CUT TO LENGTH) (SUB FOR T79477 OR R49373, THIS APPLICATION)

1шт.

5

AT107320

FUEL TANK

1шт.

AT139359

FUEL TANK

1шт.

6

AR36752

CAP

1шт.

7

24M7242

WASHER

21.400 X 42 X 5 MM

3шт.

8

19M8174

CAP SCREW

M20 X 35

3шт.

9A

FILTER

(FILTER NO LONGER REQUIRED) (SUB R34656)

1шт.

10A

SHUT-OFF VALVE

( AT35139 NO LONGER AVAILABLE, THIS APPLICATION) (SUB R34656)

1шт.

10B

R34656

HAND OPERATED VALVE

(OR SUB AT36766 AND U45768 OR U45538)

1шт.

11

R46414

CLAMP

3шт.

H75541

CLAMP

3шт.

12

19M7783

SCREW

M10 X 16

2шт.

13

M42125

FITTING

1шт.

14

R27181

GASKET

1шт.

15

AT107318

SENDER

1шт.

14H631

NUT

0.190", ELECTRICAL WIRE TO SENDER TERMINAL POST

1шт.

16

37H129

SCREW

5шт.

17

AT107319

HYDRAULIC HOSE - FABRICATE

1/2" X 1 950 MM (76-3/4") X 1/2"

1шт.

18

M43551

ELBOW FITTING

45°, (SUB FOR T24945)

1шт.

19

R44302

TIE BAND

3шт.

20

AT13740

DRAIN VALVE

1шт.

21

MOLDING

(TWO FEET CUT FROM T58056 BULK MATERIAL) INSTALL ON FRONT INSIDE EDGE OF FUEL TANK TO PREVENT CONTACT WITH FENDER (NOT ILLUSTRATED)

1шт.
