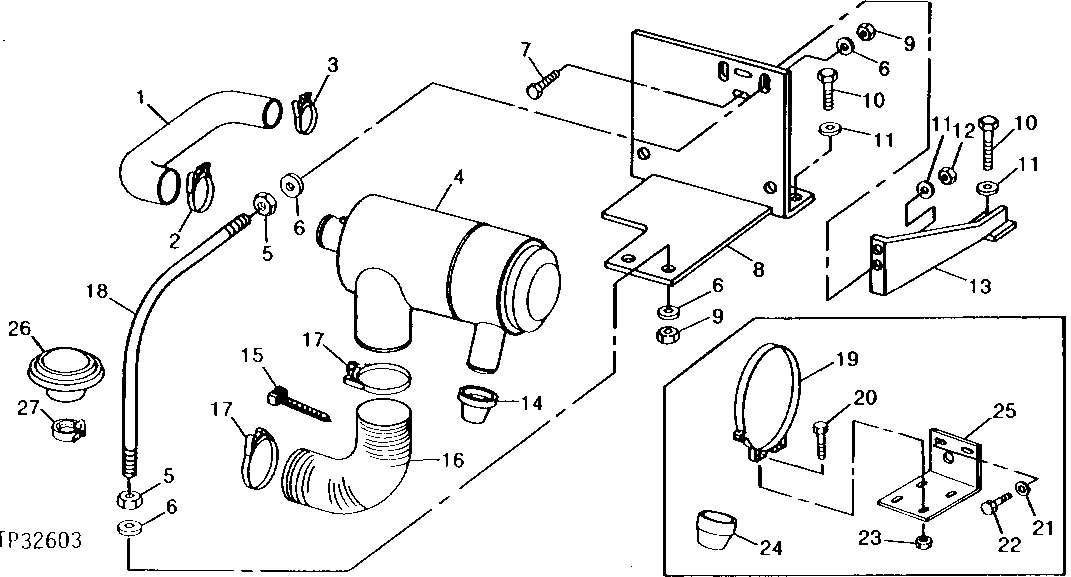

Запчасти John Deere 90D 2 - AIR CLEANER MOUNTING BRACKETS AND HOSES 520 - ENGINE AUXILIARY SYSTEMS 5

1

T108087

HOSE

1шт.

2

AT112176

HOSE CLAMP

1шт.

3

AT50923

HOSE CLAMP

(SUB FOR AT56659, THIS APPLICATION)

1шт.

4

AT112129

AIR CLEANER

1шт.

5

14M7273

NUT

M8

4шт.

6

24M7298

WASHER

8.400 X 25 X 2 MM

8шт.

7

19M7785

SCREW

M10 X 25

2шт.

8

AT115134

BRACKET

1шт.

9

14M7166

LOCK NUT

M8

4шт.

10

19H2676

CAP SCREW

3/8" X 1"

4шт.

11

24M7239

WASHER

10.700 X 21 X 2.500 MM

6шт.

12

14M7167

LOCK NUT

M10

2шт.

13

AT115155

BRACKET

1шт.

14

T23263

VALVE

1шт.

15

N189220

TIE BAND

(SUB FOR AA21510) INLET HOSE TO PILOT HOSES

1шт.

16

T114636

HOSE

1шт.

17

AR21842

CLAMP

(SUB FOR AR98951)

2шт.

18

T114600

HOOK BOLT

2шт.

19

AR64937

CLAMP

2шт.

20

19M7938

CAP SCREW

M10 X 20

4шт.

21

24M7239

WASHER

10.700 X 21 X 2.500 MM

2шт.

22

19H2284

CAP SCREW

3/8" X 7/8"

2шт.

23

14M7296

FLANGE NUT

M10

4шт.

24

T23263

VALVE

1шт.

25

T114521

STRAP

1шт.

26

AR72337

CAP

(USE WITH AT141693 FENDER ON TOP OF LEFT FRONT FENDER AIR INTAKE TUBE)

1шт.

27

C16054

CLAMP

1шт.
