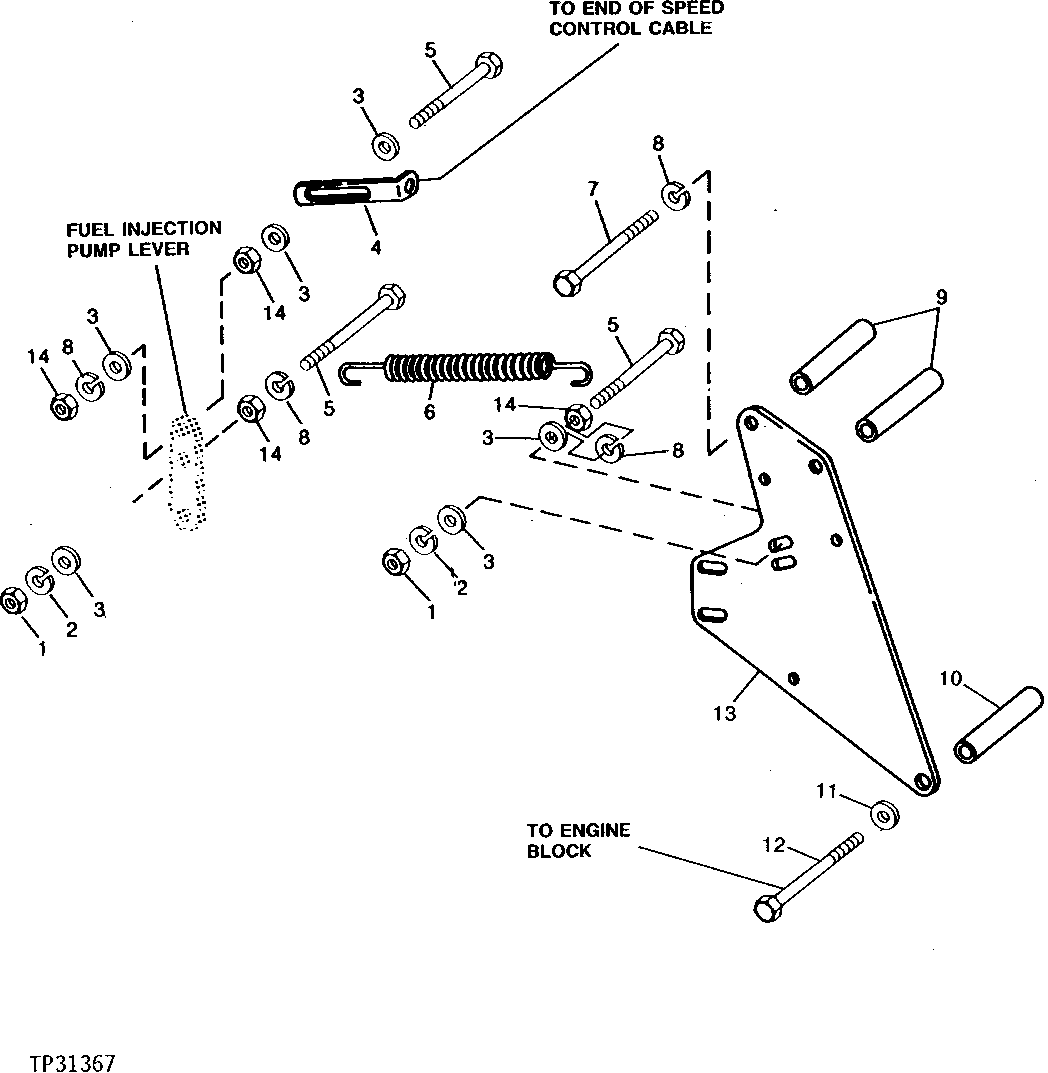

Запчасти John Deere 90D 6 - ENGINE SPEED CONTROL WITHOUT AUTO IDLE 515 - ENGINE AUXILIARY SYSTEMS 5

1

14H786

NUT

1/4"

2шт.

2

LOCK WASHER

( 12H302 NO LONGER REQUIRED)

3шт.

3

24H1821

WASHER

9/32" X 47/64" X 1/16", (SUB FOR 24H1287, THIS APPLICATION)

ARшт.

4

T138821

ANGLE

(SUB FOR T105036)

1шт.

5

19H2571

CAP SCREW

1/4" X 1-3/8", (SUB FOR 19H1791, THIS APPLICATION)

3шт.

6

R29303

SPRING

1шт.

7

19H2562

CAP SCREW

3/8" X 5-3/4"

2шт.

8

12M7006

LOCK WASHER

6 MM

6шт.

9

R86848

BUSHING

2шт.

10

28H1556

BUSHING

0.622" X 0.840" X 2-1/2"

1шт.

11

24H1890

WASHER

19/32" X 1" X 1/4"

1шт.

12

19H2963

CAP SCREW

9/16" X 3-1/2"

1шт.

13

AT114913

PLATE

1шт.

14

14H850

NUT

1/4", (SUB FOR 14H786, THIS APPLICATION)

4шт.
