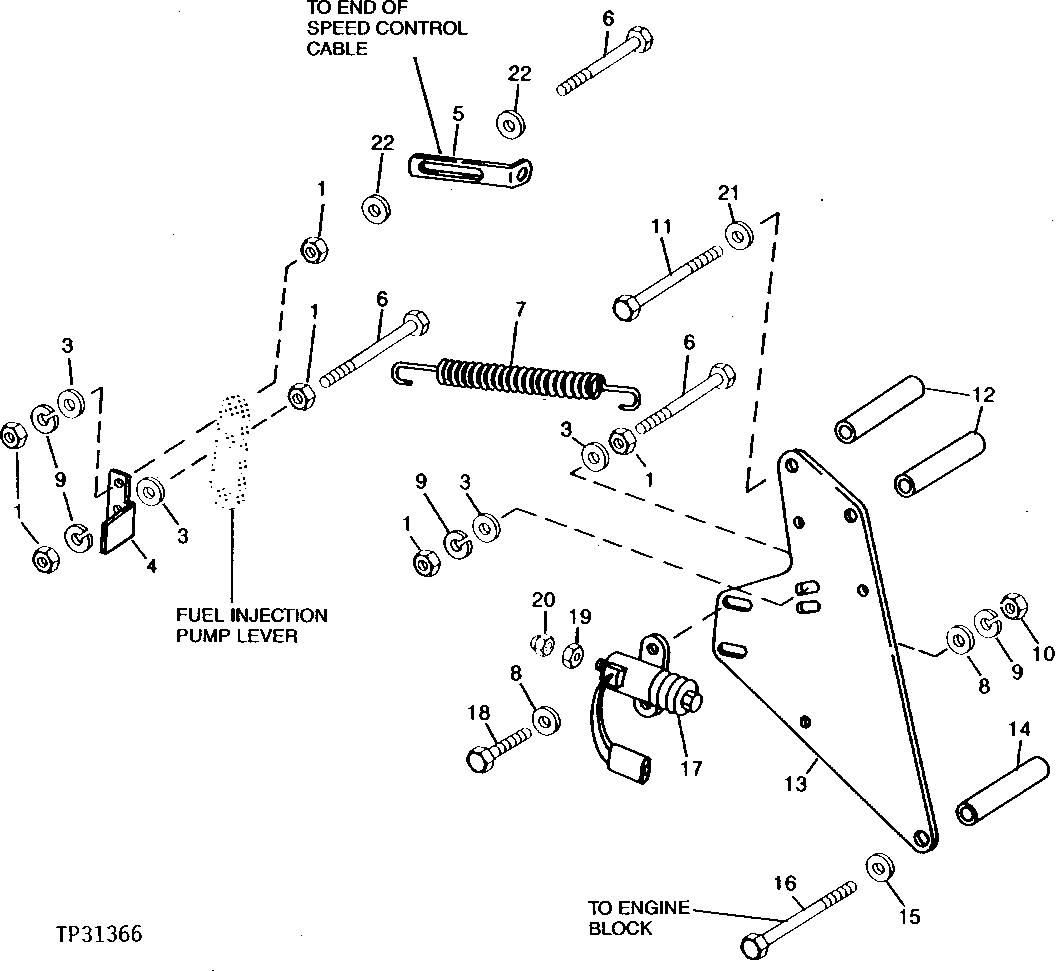

Запчасти John Deere 90D 2 - ENGINE SPEED CONTROL WITH AUTO IDLE 515 - ENGINE AUXILIARY SYSTEMS 5

1

14H850

NUT

1/4"

6шт.

2

12H302

LOCK WASHER

1/4", (NO LONGER USED)

1шт.

3

24H1287

WASHER

9/32" X 5/8" X 0.065"

4шт.

4

T114769

ANGLE

1шт.

5

T138821

ANGLE

(SUB FOR T105036)

1шт.

6

19H2571

CAP SCREW

1/4" X 1-3/8", (SUB FOR 19H1791, THIS APPLICATION)

3шт.

7

R29303

SPRING

1шт.

8

24M7088

WASHER

6.600 X 12 X 1.600 MM

4шт.

9

12M7006

LOCK WASHER

6 MM, (NO LONGER USED)

5шт.

10

14M7165

LOCK NUT

M6, (SUB FOR 14M7272, THIS APPLICATION)

2шт.

11

19H2562

CAP SCREW

3/8" X 5-3/4"

2шт.

12

R86848

BUSHING

2шт.

13

AT114913

PLATE

1шт.

14

28H1556

BUSHING

0.622" X 0.840" X 2-1/2"

1шт.

15

24H1890

WASHER

19/32" X 1" X 1/4"

1шт.

16

19H2963

CAP SCREW

9/16" X 3-1/2"

1шт.

17

AT115077

SOLENOID

(ALSO ORDER R78054, R78063 AND R78061)

1шт.

18

19M7077

CAP SCREW

M6 X 20

2шт.

19

14H649

NUT

1/4"

1шт.

20

14H1082

NUT

ACORN

1шт.

21

24M7239

WASHER

10.700 X 21 X 2.500 MM

2шт.

22

24H1821

WASHER

4шт.
