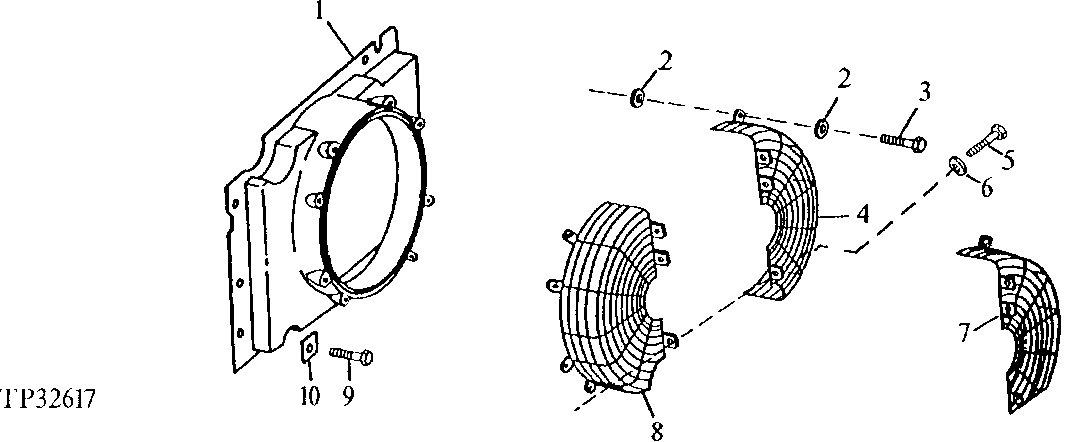

Запчасти John Deere 90D 3 - RADIATOR FAN SHROUD AND FAN GUARD 510 - ENGINE AUXILIARY SYSTEMS 5

1

AT130228

SHROUD

1шт.

2

24M7298

WASHER

8.400 X 25 X 2 MM, (WITHOUT AIR CONDITIONING)

16шт.

24M7298

WASHER

(WITH AIR CONDITIONING)

14шт.

3

19M7163

CAP SCREW

M8 X 25, (WITHOUT AIR CONDITIONING)

8шт.

19M7163

CAP SCREW

M8 X 25, (WITH AIR CONDITIONING)

7шт.

4

AT115044

GUARD

(WITHOUT AIR CONDITIONING)

1шт.

5

19M7402

CAP SCREW

M10 X 25

3шт.

6

24M7239

WASHER

3шт.

7

AT115045

GUARD

(WITH AIR CONDITIONING)

1шт.

8

AT115043

GUARD

1шт.

9

19M7862

SCREW

M6 X 20

9шт.

10

U40479

STRAP

10шт.
