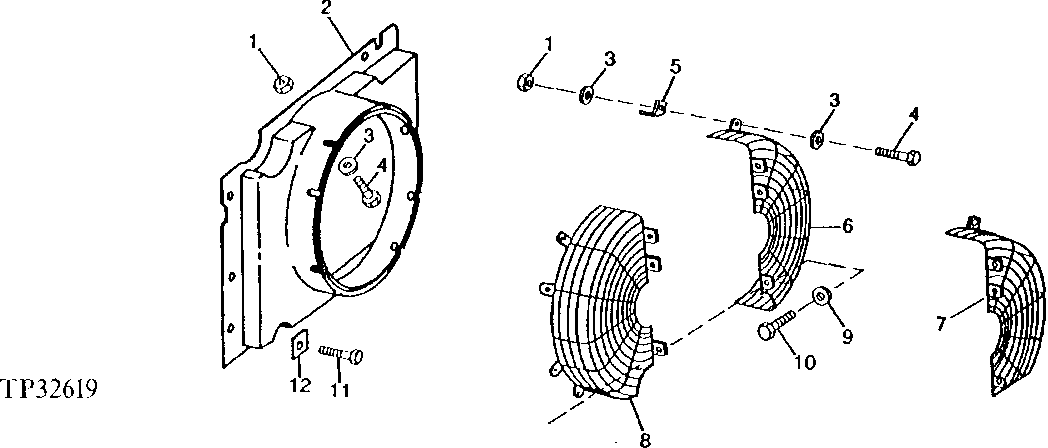

Запчасти John Deere 90D 2 - RADIATOR FAN SHROUD AND FAN GUARD 510 - ENGINE AUXILIARY SYSTEMS 5

1

14M7166

LOCK NUT

M8, WITHOUT AIR CONDITIONING

16шт.

14M7166

LOCK NUT

M8, WITH AIR CONDITIONING

14шт.

2

T108071

SHROUD

1шт.

3

24M7298

WASHER

8.400 X 25 X 2 MM, (SUB FOR 24M7207) WITHOUT AIR CONDITIONING

24шт.

24M7298

WASHER

8.400 X 25 X 2 MM, (SUB FOR 24M7207) WITH AIR CONDITIONING

21шт.

4

19M7139

CAP SCREW

M8 X 20, WITHOUT AIR CONDITIONING

16шт.

19M7139

CAP SCREW

M8 X 20, WITH AIR CONDITIONING

14шт.

5

T114752

ANGLE

WITHOUT AIR CONDITIONING

8шт.

T114752

ANGLE

WITH AIR CONDITIONING

7шт.

6

AT115044

GUARD

(WITHOUT AIR CONDITIONING)

1шт.

7

AT115045

GUARD

WITH AIR CONDITIONING

1шт.

8

AT115043

GUARD

1шт.

9

24M7239

WASHER

10.700 X 21 X 2.500 MM

3шт.

10

19M7402

CAP SCREW

M10 X 25

3шт.

11

19M7862

SCREW

M6 X 20

9шт.

12

U40479

STRAP

9шт.
