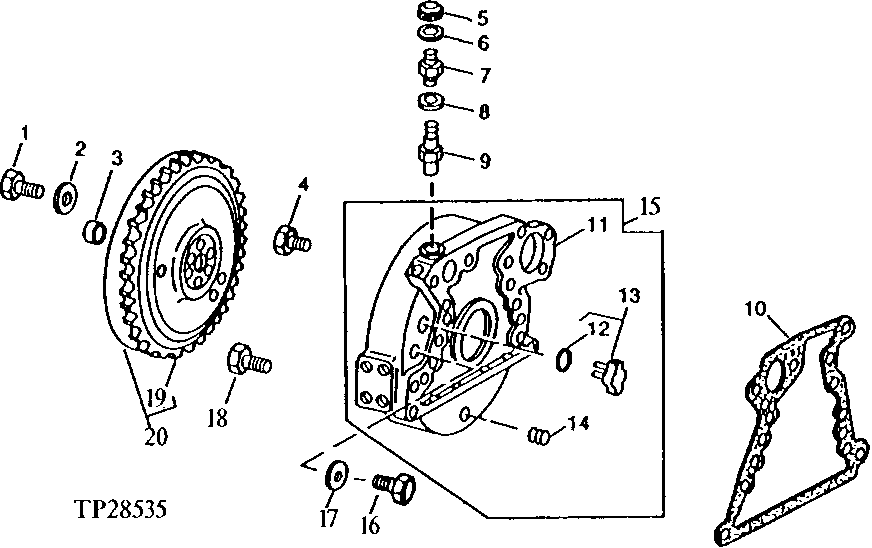

Запчасти John Deere 90D 1 - FLYWHEEL AND FLYWHEEL HOUSING 433 - ENGINE 4

1

19H2993

CAP SCREW

HS, SAE 8, 1/2" X 1-1/2"

4шт.

2

T23891

WASHER

4шт.

3

AR48751

BALL BEARING

1шт.

4

19H2545

CAP SCREW

3/8" X 1-3/8"

8шт.

5

B3362R

CAP

ARшт.

6

B3285R

WASHER

ARшт.

7

T22537

FITTING

ARшт.

8

T13213

WASHER

ARшт.

9

T22536

GEAR

TACHOMETER DRIVE (12 TEETH)

ARшт.

10

R97351

GASKET

(SUB FOR R70483)

1шт.

11

HOUSING

1шт.

12

R27149

O-RING

1шт.

13

AR61533

PLUG

1шт.

14

RE57836

PIPE PLUG

(SUB FOR 15H624) HEX. CTSK. 1/2"

ARшт.

15

RE38348

HOUSING

(MARKED R98778 AND R120034) (SUB FOR AR89606) (MARKED R63192)

1шт.

16

19H2351

CAP SCREW

1/2" X 1/2"

1шт.

17

T20168

WASHER

ARшт.

18

19H2599

CAP SCREW

5/8" X 2-1/2"

4шт.

19

R28811

RING GEAR

(129 TEETH)

1шт.

20

RE23941

FLYWHEEL

(MARKED R84122)

1шт.
