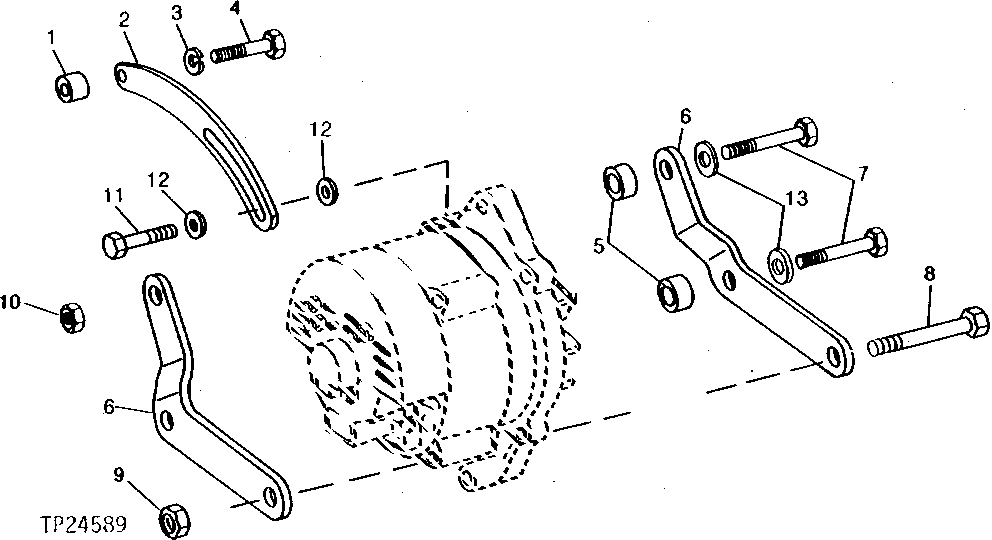

Запчасти John Deere 90D 1 - ALTERNATOR MOUNTING BRACKETS AND ADJUSTING STRAPS 423 - ENGINE 4

1

28H1884

SPACER

0.493" X 0.675" X 1/2"

1шт.

28H860

WASHER

0.423" X 0.675" X 3/8"

1шт.

2

R71250

STRAP

1шт.

R108404

STRAP

1шт.

3

12H304

LOCK WASHER

3/8"

1шт.

4

19H2633

CAP SCREW

3/8" X 1-1/2"

1шт.

5

28H862

SPACER

PIPE

2шт.

6

R57260

BRACKET

2шт.

7

19H2458

CAP SCREW

3/8" X 3"

2шт.

8

19M8081

CAP SCREW

M10 X 80

1шт.

9

14M7167

LOCK NUT

M10

1шт.

10

14H812

NUT

3/8"

2шт.

11

19M7867

SCREW

M8 X 25

1шт.

19M7868

SCREW

M8 X 30

1шт.

12

24M7024

WASHER

9 X 28 X 3 MM

2шт.

24H1887

WASHER

11/32" X 1" X 0.134"

2шт.

13

24H1304

WASHER

13/32" X 23/32" X 0.120"

2шт.
