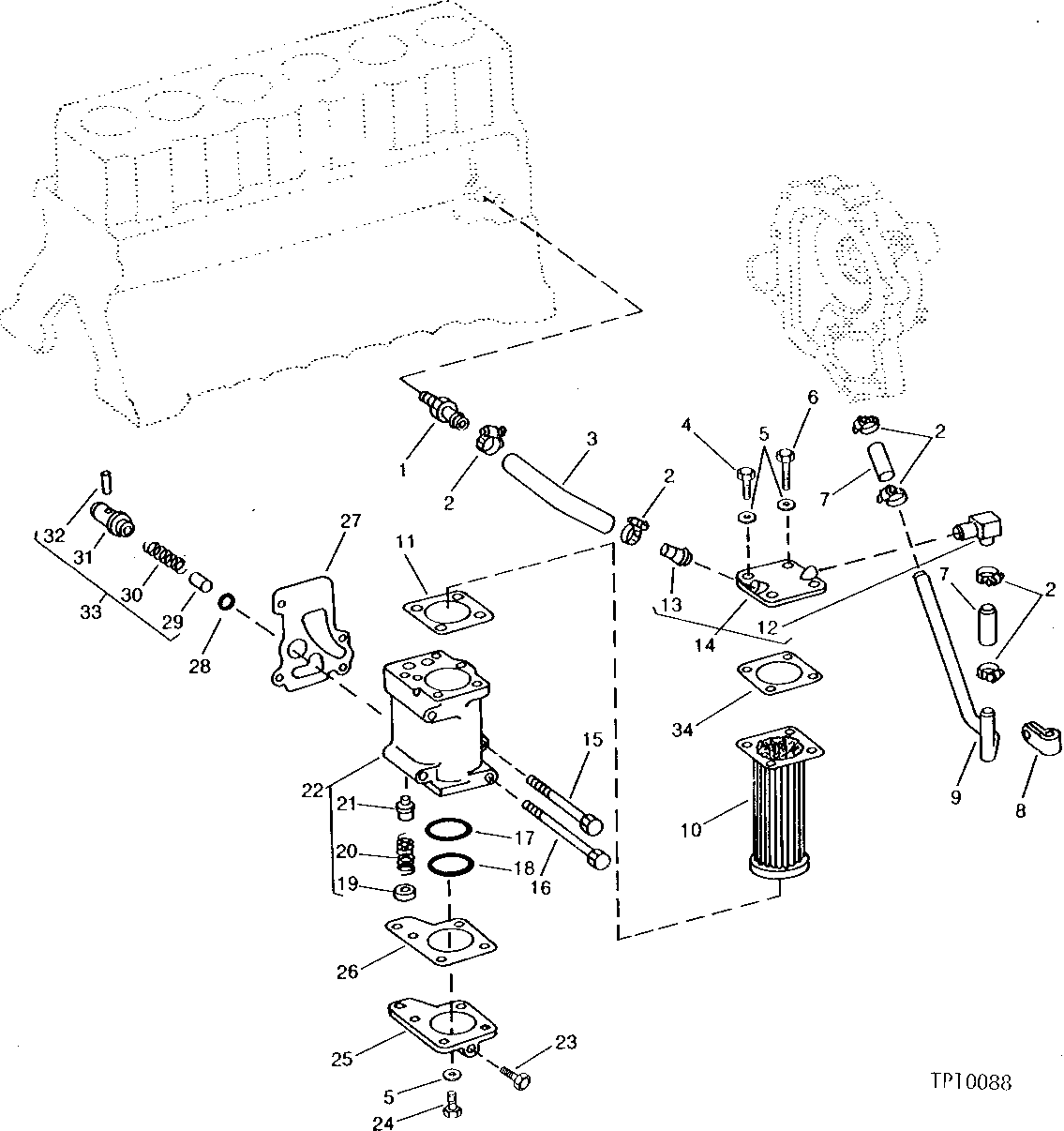

Запчасти John Deere 90D 2 - ENGINE OIL COOLER 419 - ENGINE 4

1

R39503

FITTING

1шт.

2

AR21839

CLAMP

(SUB TY22467)

6шт.

3

R54826

HOSE

1шт.

4

19H2633

CAP SCREW

3/8" X 1-1/2"

3шт.

5

12H304

LOCK WASHER

3/8"

9шт.

6

19H3065

CAP SCREW

3/8" X 2"

1шт.

7

HOSE

(MAKE FROM R57300 BULK MATERIAL, CUT TO LENGTH)

2шт.

8

T24959

CLAMP

1шт.

9

R60961

TUBE

1шт.

10

RE31286

OIL COOLER

(SUB FOR AR66405) (ALSO ORDER (3) 19H2633 AND 19H1801)

1шт.

11

R98484

GASKET

(SUB FOR R56194)

1шт.

12

AR26732

ELBOW FITTING

1шт.

13

R34985

LINE

1шт.

14

AR66406

COVER

(MARKED R56195)

1шт.

15

19H2104

CAP SCREW

3/8" X 5"

2шт.

24M7106

WASHER

0.394" X 0.709" X 0.098"

2шт.

16

19H3329

CAP SCREW

3/8" X 5-3/4"

2шт.

17

R56192

O-RING

1шт.

18

R56193

O-RING

1шт.

19

VALVE SEAT

(SUB AR103164)

1шт.

20

SPRING

(SUB AR103164)

1шт.

21

VALVE

(SUB AR103164)

1шт.

22

AR103164

HOUSING

(MARKED R76240)

1шт.

23

R42852

PIPE PLUG

1шт.

24

T22874

BOLT

3/8" X 1.120"

5шт.

25

R56197

COVER

1шт.

26

R98485

GASKET

(SUB FOR R56198)

1шт.

27

R98489

GASKET

(SUB FOR R76243)

1шт.

28

R61871

O-RING

1шт.

29

VALVE

(SUB AR63351)

1шт.

30

R46625

SPRING

1шт.

31

HOUSING

(SUB AR63351)

1шт.

32

34H184

SPRING PIN

1/8" X 1-1/8"

1шт.

33

AR63351

VALVE

1шт.

34

R98471

GASKET

(SUB FOR R79551)

1шт.
