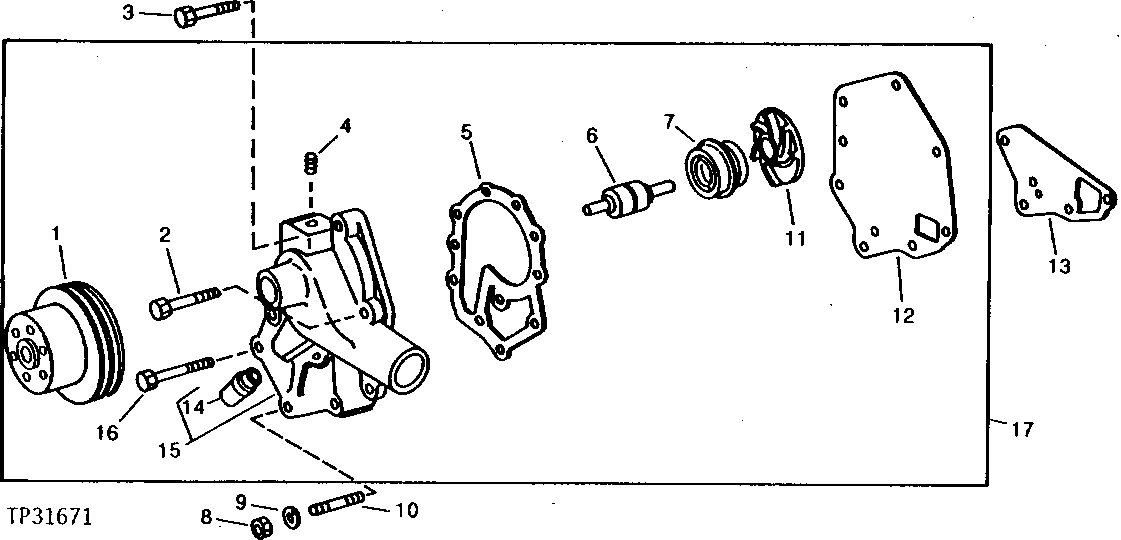

Запчасти John Deere 90D 1 - WATER PUMP 417 - ENGINE 4

1

R92553

PULLEY

1шт.

2

19H2633

CAP SCREW

3/8" X 1-1/2"

5шт.

3

19H3031

CAP SCREW

3/8" X 2-1/2"

1шт.

19H3217

CAP SCREW

3/8" X 1-3/4"

2шт.

19H2458

CAP SCREW

3/8" X 3"

1шт.

4

15H584

PIPE PLUG

1/2"

1шт.

5

R56809

GASKET

1шт.

6

JD8643

BEARING

1шт.

7

AR101549

SEAL KIT

WATER PUMP SEAL

1шт.

8

14H812

NUT

3/8"

1шт.

9

12H304

LOCK WASHER

3/8"

1шт.

10

T25701

STUD

1шт.

11

R99122

IMPELLER

(USE IF AVAILABLE)

1шт.

R56812

IMPELLER

(SUB FOR R99122)

1шт.

12

R56811

COVER

1шт.

13

T20243

GASKET

1шт.

14

R34985

LINE

1шт.

15

AR80116

HOUSING

WITH TUBES, (MARKED R56813 OR R90783)

1шт.

16

19H1726

CAP SCREW

3/8" X 2-1/4"

1шт.

19H2676

CAP SCREW

3/8" X 1"

1шт.

17

RE27504

WATER PUMP

(ALSO ORDER T20243)

1шт.
