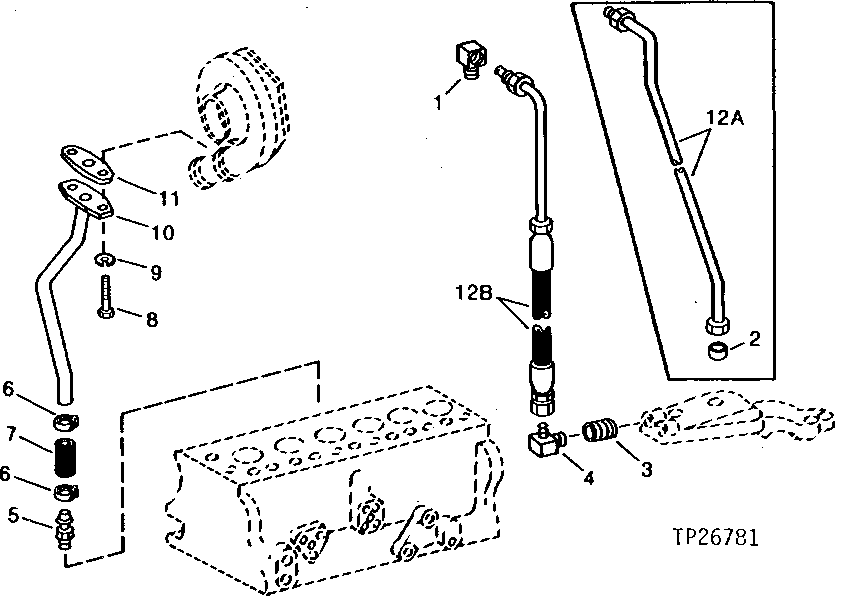

Запчасти John Deere 90D 3 - TURBOCHARGER OIL LINES 416 - ENGINE 4

1

T11180

ELBOW FITTING

1шт.

2

R67092

SEALING WASHER

(LOWER END OF RE26124)

1шт.

3

15H619

PIPE BUSHING

3/8"

1шт.

4

R67803

FITTING

1шт.

AR26708

FITTING

1шт.

5

R39503

FITTING

1шт.

6

AR21839

CLAMP

(SUB TY22467)

2шт.

7

HOSE

(CUT TO LENGTH) (MAKE FROM R120013) (SUB FOR R81210)

1шт.

8

19H2284

CAP SCREW

3/8" X 7/8", (USE WITH RE33058)

2шт.

R124277

CAP SCREW

(USE WITH RE62101)

2шт.

9

12H304

LOCK WASHER

3/8", (USE WITH 19H2284)

2шт.

10

RE62101

OIL LINE

(SUB FOR RE19268 AND RE33058) (ALSO ORDER (2) R124277)

1шт.

11

R97349

GASKET

(USE IF AVAILABLE) (SUB FOR R43416)

1шт.

R105346

GASKET

(SUB FOR R97349)

1шт.

12A

RE26124

OIL LINE

(INCLUDES R67092)

1шт.

12B

RE45423

OIL LINE

(SUB FOR RE40376)

1шт.
