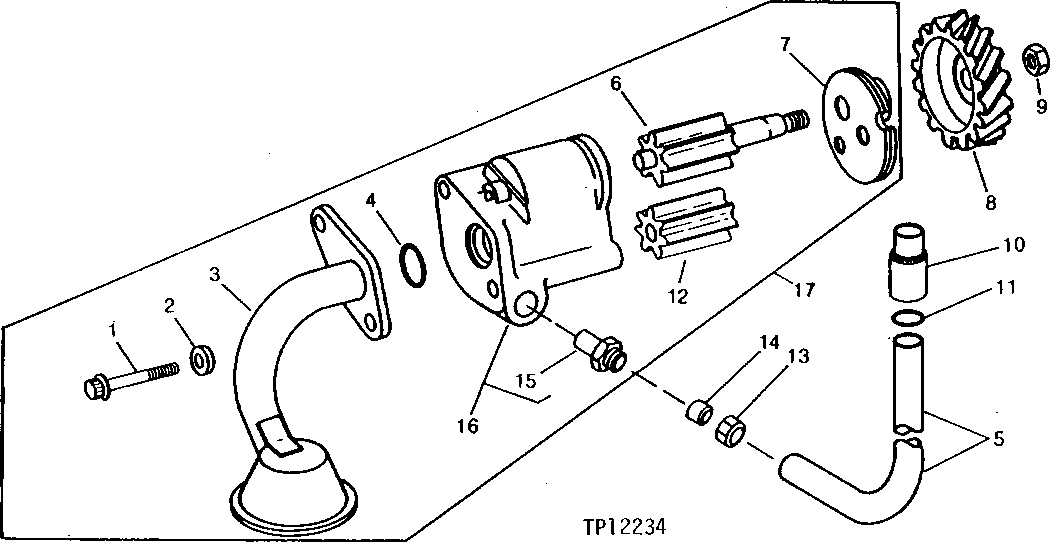

Запчасти John Deere 90D 2 - ENGINE OIL PUMP 407 - ENGINE 4

1

R116424

SCREW

(SUB FOR R74552, THIS APPLICATION) (ALSO ORDER (2) R74553)

2шт.

2

R74553

WASHER

(USE WITH R116424)

2шт.

3

RE20853

OIL PUMP INTAKE

(SUB RE56389)

1шт.

4

R61871

O-RING

1шт.

5

R79561

OIL TUBE

(K)

1шт.

6

AR85788

SHAFT

(7 TEETH) (ALSO ORDER R66177)

1шт.

7

R54632

COVER

1шт.

8

T20298

GEAR

(33 TEETH)

1шт.

9

14H826

NUT

1/2"

1шт.

10

R54815

FITTING

1шт.

R115390

BUSHING

(USE WITH CYLINDER BLOCK MARKED R112871)

1шт.

11

R80632

O-RING

(SUB FOR R77052)

ARшт.

R97185

O-RING

(USE WITH CYLINDER BLOCK MARKED R112871)

1шт.

12

R66177

GEAR

(7 TEETH) (ALSO ORDER AR85788)

1шт.

R112867

OIL TUBE

(USE WITH CYLINDER BLOCK MARKED R112871)

1шт.

13

R79562

FITTING

(K)

1шт.

14

R79563

SLEEVE

(K)

1шт.

15

R79560

ADAPTER FITTING

(K)

1шт.

16

RE15490

HOUSING

(MARKED R54629)

1шт.

17

AR79466

OIL PUMP

1шт.
