Запчасти John Deere 90D 1 - ENGINE OIL PAN AND DIPSTICK 407 - ENGINE 4

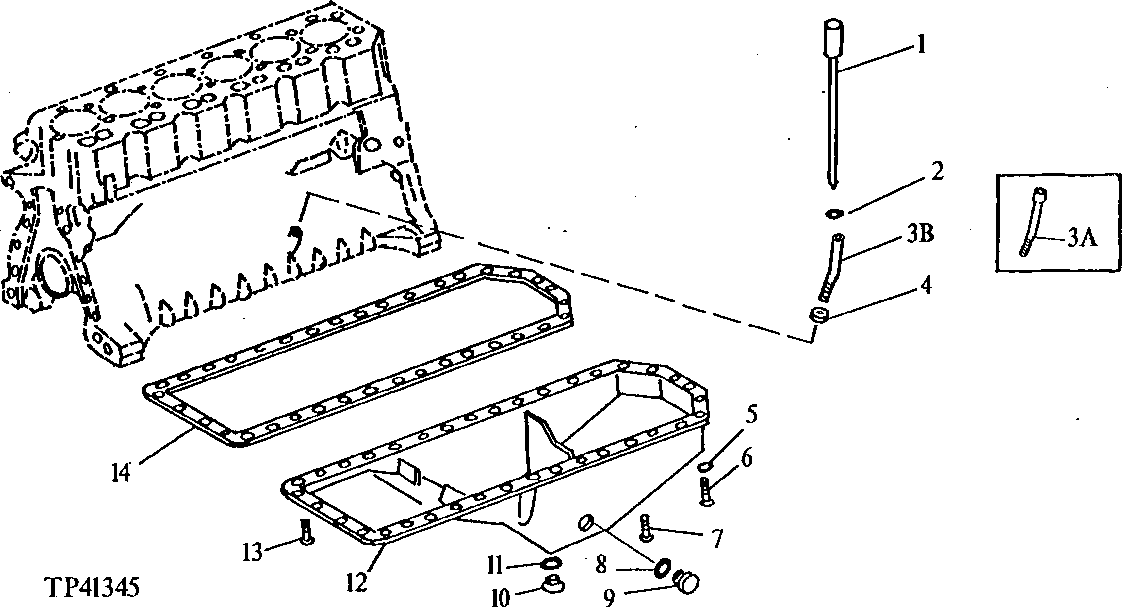

Схема запчастей John Deere 90D - 1 - ENGINE OIL PAN AND DIPSTICK 407 - ENGINE 4

Артикул

Название

Примечание

Количество

1

AR63348

DIPSTICK

1шт.

AT21535

DIPSTICK

1шт.

2

R10093

O-RING

1шт.

3A

AR72889

DIPSTICK TUBE

1шт.

3B

R86819

DIPSTICK TUBE

1шт.

4

14H826

NUT

1/2"

1шт.

5

12H304

LOCK WASHER

3/8"

4шт.

6

19H3411

SCREW

3/8" X 1-1/8"

2шт.

7

19H3065

CAP SCREW

3/8" X 2"

4шт.

8

R47151

O-RING

1шт.

9

R27474

DRAIN PLUG

1шт.

10

M1746T

DRAIN PLUG

ARшт.

11

T13213

WASHER

1шт.

12

R132653

OIL PAN

(SUB FOR R59048 AND R108380) (ALSO ORDER M1746T AND (2) 19H3727)

1шт.

13

19H3411

SCREW

3/8" X 1-1/8"

26шт.

19H3727

SCREW

3/8" X 2"

4шт.

14

R97344

GASKET

OIL PAN, (SUB FOR T20205)

1шт.

Выбрано товаров: 17
