Запчасти John Deere 90D 1 - CONNECTING ROD, PISTON, RINGS AND LINER 403 - ENGINE 4

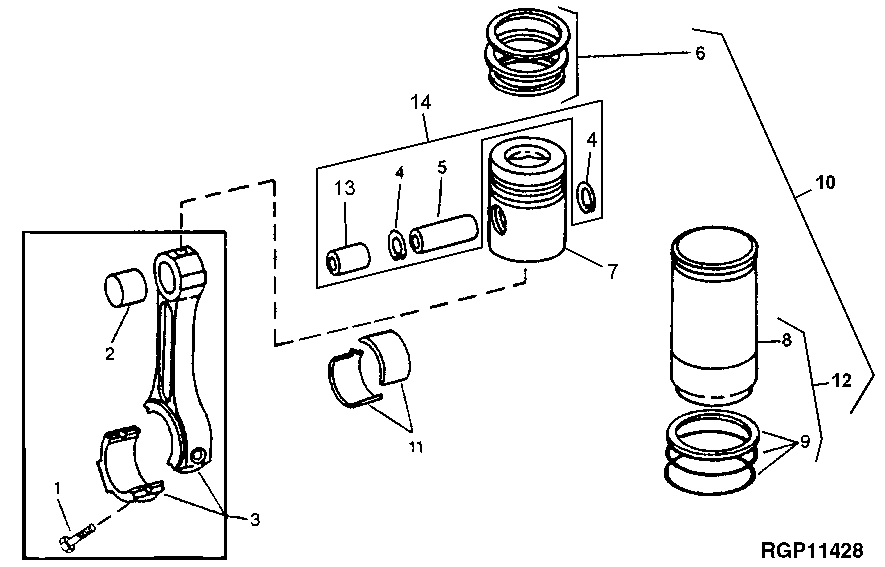

Схема запчастей John Deere 90D - 1 - CONNECTING ROD, PISTON, RINGS AND LINER 403 - ENGINE 4

Артикул

Название

Примечание

Количество

1

R74195

SCREW

12шт.

2

BUSHING

( R56186 AND R57451 NO LONGER AVAILABLE) (SUB RE63913, THIS APPLICATION)

6шт.

3

RE53716

CONNECTING ROD

(MARKED R116851) (SUB FOR AR66400) (MARKED R56187)

6шт.

SE500746

CONNECTING ROD

(REMANUFACTURED)

6шт.

4

R54114

SNAP RING

12шт.

5

PIN

( R124230 N0 L0NGER AVAILABLE,FURNISH RE63913)

6шт.

6

RE507852

PISTON RING KIT

(SUB FOR RE15674, RE48818, RE66820)

6шт.

7

PISTON

(FURNISH RE19833)

6шт.

8

R121867

CYLINDER LINER

(SUB FOR R80500 OR R54505) (SUB RE500024) (ALSO USE AR54749 LUBRICANT FOR CYLINDER LINER PACKING INSTALLATION)

6шт.

9

AR65507

O-RING KIT

6шт.

10

RE19833

KIT

(SUB FOR RE19832)

6шт.

11

AR97517

BEARING

(SET OF (2) R54801) (SUB FOR AR69098)

6шт.

BEARING

( AR68413 NO LONGER AVAILABLE) .05 MM (.002") UNDERSIZE (SET OF (2) R57123)

6шт.

AR68414

BEARING

25 MM (.010") UNDERSIZE (SET OF (2) R57124) (SUB AR97653)

6шт.

AR68415

BEARING

51 MM (.20") UNDERSIZE (SET OF (2) R57125) (SUB AR97654)

6шт.

AR68416

BEARING

76 MM (.030") UNDERSIZE (SET OF (2) R57126) (SUB AR97655)

6шт.

12

RE500024

CYLINDER LINER

6шт.

13

BUSHING

6шт.

14

RE63913

KIT

6шт.

Выбрано товаров: 19
