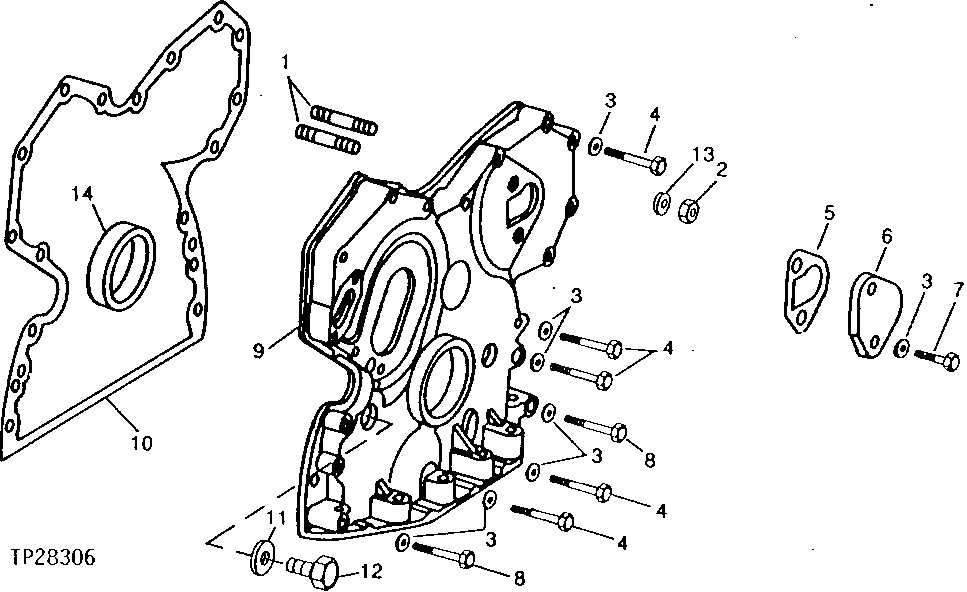

Запчасти John Deere 90D 5 - TIMING GEAR COVER 402 - ENGINE 4

1

R122226

STUD

2шт.

2

14H812

NUT

3/8"

2шт.

3

24H1304

WASHER

13/32" X 23/32" X 0.120"

16шт.

4

19H2549

CAP SCREW

3/8" X 1-7/8"

5шт.

19H2545

CAP SCREW

3/8" X 1-3/8"

5шт.

5

R125066

GASKET

(SUB FOR R78366 OR R97773)

1шт.

6

R126041

COVER

(SUB FOR T20362)

1шт.

7

R124277

CAP SCREW

(SUB FOR R122618, THIS APPLICATION)

2шт.

8

19H3031

CAP SCREW

3/8" X 2-1/2"

2шт.

9

RE39252

COVER

WITH INSERTS, (SUB FOR RE27895)

1шт.

10

R126513

GASKET

(SUB FOR T20155, R97454, R119269 OR R121314)

1шт.

11

A4827R

WASHER

1шт.

12

T27657

FITTING PLUG

1шт.

13

12H304

LOCK WASHER

3/8"

2шт.

14

AR67942

SEAL

(USE IF AVAILABLE)

1шт.
