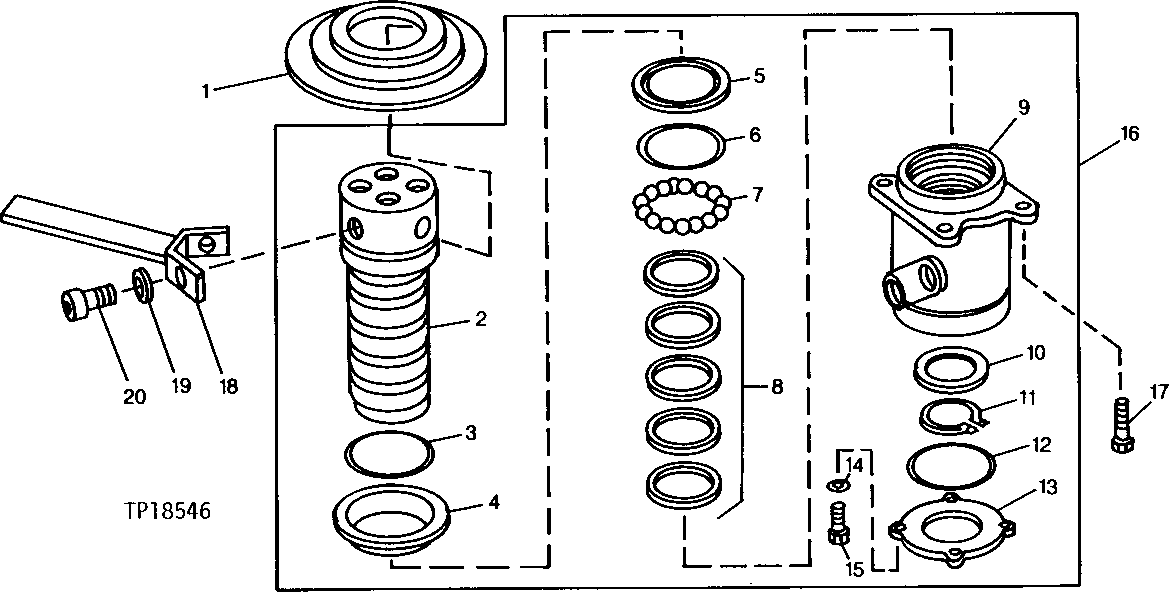

Запчасти John Deere 90D 8 - ROTARY MANIFOLD 260 - AXLES AND SUSPENSION SYSTEMS 2

1

4176863

COVER

(SUB FOR T107046)

1шт.

2

SPINDLE

( TH108903 NO LONGER AVAILABLE)

1шт.

3

CH17447

PACKING

1шт.

4

4187060

COVER

(SUB FOR TH108904)

1шт.

5

TH108908

SEAL

1шт.

6

TH110021

O-RING

(SUB FOR TH108905)

1шт.

7

972658

BALL

(SUB FOR T38788)

20шт.

8

AT165703

SEAL

(BLUE) (SUB FOR TH108906 TAN SEAL)

5шт.

9

HOUSING

( TH108902 NOT AVAILABLE FOR SERVICE)

1шт.

10

4176429

RING

(SUB FOR TH108907)

1шт.

11

40M7065

SNAP RING

1шт.

12

T110443

O-RING

1шт.

13

2021481

COVER

(SUB FOR TH108909)

1шт.

14

12M7066

LOCK WASHER

10 MM

4шт.

15

19M7662

CAP SCREW

M10 X 30

4шт.

16

9097161EX

MANIFOLD

(SUB FOR AT105530) (SUB FOR AT182273)

1шт.

17

19M7403

CAP SCREW

M12 X 35

4шт.

18

8033211

STOP

(SUB FOR AT107243)

1шт.

19

24H1890

WASHER

19/32" X 1" X 1/4"

2шт.

20

19M6332

CAP SCREW

M14 X 35

2шт.
