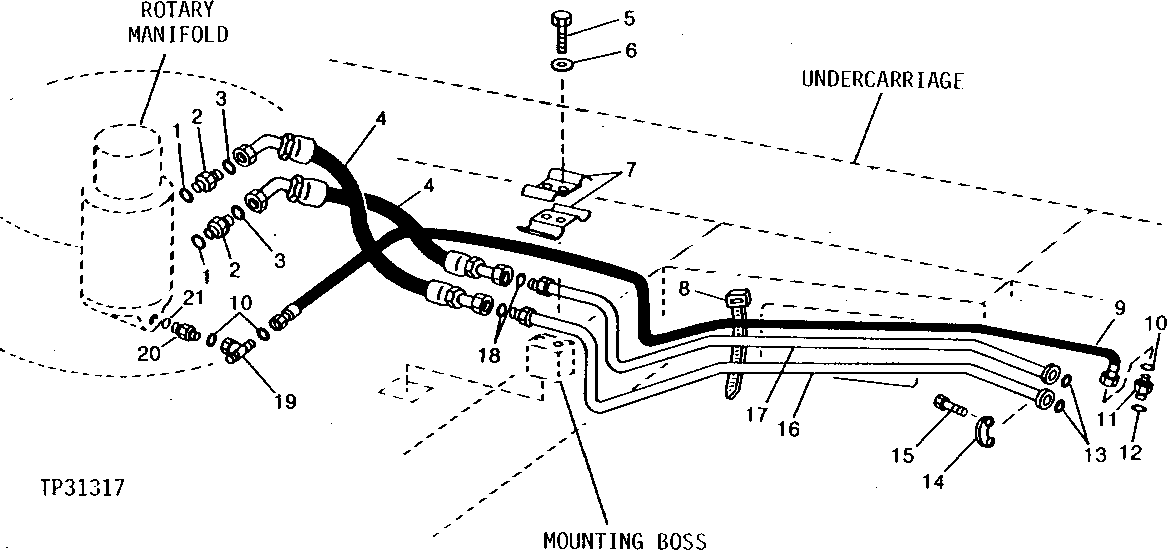

Запчасти John Deere 90D 7A - PROPEL MOTOR TO ROTARY MANIFOLD HOSES AND LINES 260 - AXLES AND SUSPENSION SYSTEMS 2

1

AT318035

O-RING

(SUB FOR 4506424, TH100055)

4шт.

2

4189601

ADAPTER FITTING

(SUB FOR AT107394)

4шт.

3

T76938

O-RING

4шт.

4

AT125412

HYDRAULIC HOSE

1-7/16" X 788 MM (31") X 1-7/16"

2шт.

T107029

CONDUIT

PROTECT HOSES AT UNDERCARRIAGE TOWER OPENING

2шт.

5

19M7658

CAP SCREW

M10 X 50

4шт.

6

24H1308

WASHER

13/32" X 1" X 0.134"

4шт.

7

T35868

CLAMP

4шт.

8

H77698

TIE BAND

4шт.

9

AT134900

HYDRAULIC HOSE - FABRICATE

13/16" X 2 386 MM (94") X 13/16", LONG AND WIDE UNDERCARRIAGE

2шт.

AT85038

HYDRAULIC HOSE - FABRICATE

13/16" X 2 060 MM (81") X 13/16", SHORT AND NARROW UNDERCARRIAGE

2шт.

AT85038

HYDRAULIC HOSE - FABRICATE

13/16" X 2 060 MM (81") X 13/16", SHORT AND WIDE UNDERCARRIAGE

2шт.

10

T77857

O-RING

5шт.

11

T104375

ADAPTER FITTING

2шт.

12

CH11570

O-RING

2шт.

13

T78313

O-RING

4шт.

14

H61354

FLANGE FITTING

8шт.

15

19M8881

SCREW

M10 X 30

16шт.

16

AT115284

OIL LINE

RIGHT (SHORT AND NARROW UNDERCARRAIGE)

1шт.

AT115286

OIL LINE

LEFT (NOT ILLUSTRATED)

1шт.

AT115288

OIL LINE

RIGHT (SHORT AND WIDE UNDERCARRIAGE)

1шт.

AT115290

OIL LINE

LEFT (NOT ILLUSTRATED)

1шт.

AT115279

OIL LINE

RIGHT (LONG AND WIDE UNDERCARRIAGE)

1шт.

AT115281

OIL LINE

LEFT (NOT ILLUSTRATED)

1шт.

17

AT115285

OIL LINE

RIGHT (SHORT AND NARROW)

1шт.

AT115287

OIL LINE

LEFT

1шт.

AT115289

OIL LINE

RIGHT (SHORT AND WIDE)

1шт.

AT115291

OIL LINE

LEFT (NOT ILLUSTRATED)

1шт.

AT115280

OIL LINE

RIGHT (LONG AND WIDE)

1шт.

AT115282

OIL LINE

LEFT (NOT ILLUSTRATED)

1шт.

18

T76938

O-RING

4шт.

19

38H1039

TEE FITTING

1шт.

20

4198407

ADAPTER FITTING

(SUB FOR AT107395)

1шт.

21

R56464

O-RING

1шт.
