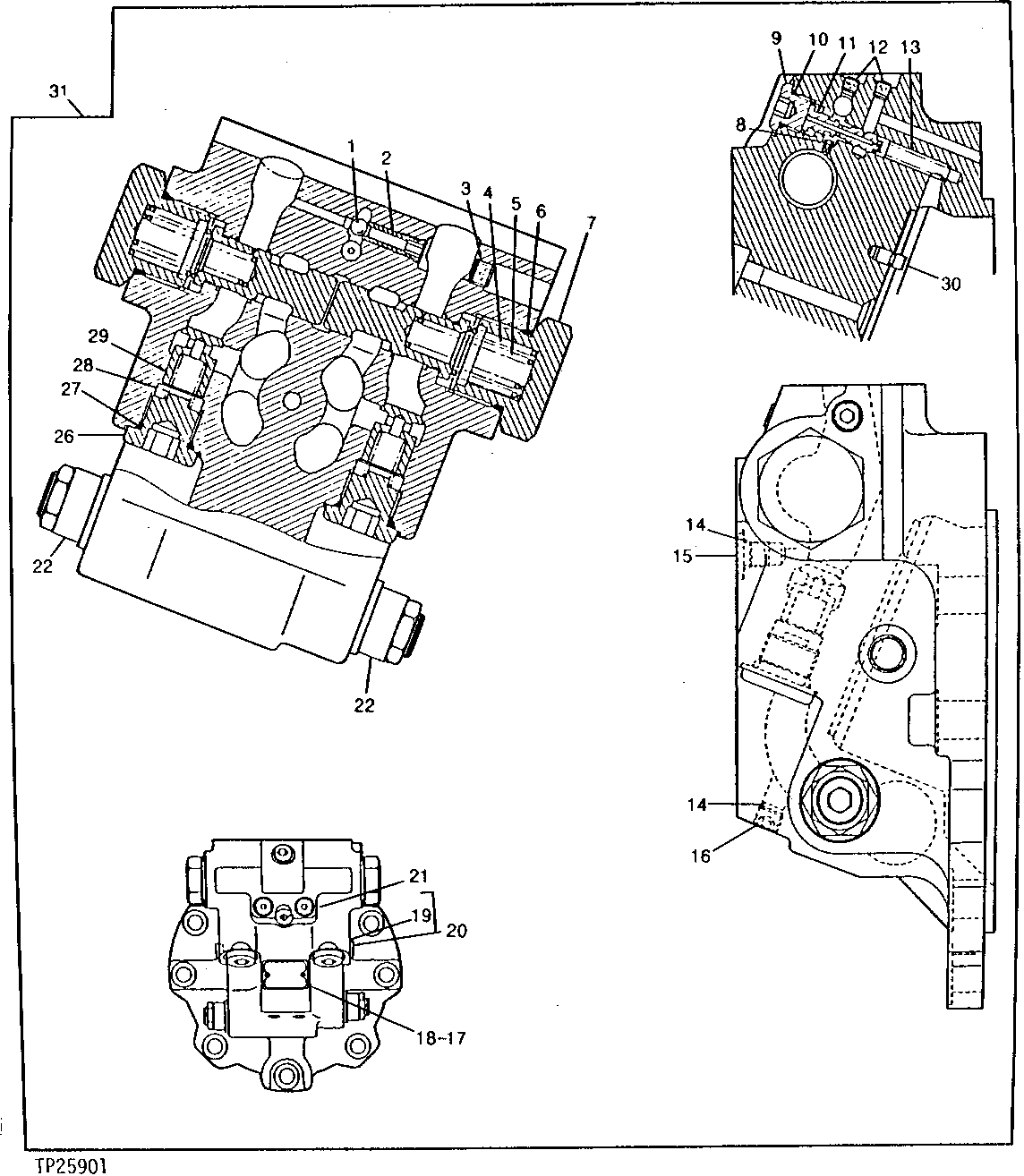

Запчасти John Deere 90D 4 - BRAKE VALVE 260 - AXLES AND SUSPENSION SYSTEMS 2

1

R26552

BALL

1шт.

2

4192229

VALVE SEAT

(SUB FOR T107792)

1шт.

3

94-2011

FITTING PLUG

(SUB FOR TH100434)

1шт.

4

4180687

SPRING

(SUB FOR T107785)

2шт.

5

4180688

COMPRESSION SPRING

(SUB FOR T107786)

2шт.

6

T110441

O-RING

(SUB FOR T107787)

2шт.

7

4195070

FITTING PLUG

(SUB FOR T107794)

2шт.

8

4202942

ORIFICE

(A) (SUB FOR T107796)

1шт.

4202942

ORIFICE

(SUB FOR TH109128, THIS APPLICATION) (SUB FOR T107796)

1шт.

9

15M7036

DRAIN PLUG

1шт.

10

CH11570

O-RING

1шт.

11

4190670

VALVE SPOOL

(SUB FOR T107793)

1шт.

12

15H560

PIPE PLUG

1/16", (SUB FOR R11016)

2шт.

13

4185136

SPRING

(SUB FOR T107783)

1шт.

14

M800650

PACKING

4шт.

15

4208977

DRAIN PLUG

(SUB FOR T107790) (SUB FOR TH111351)

2шт.

16

94-2011

FITTING PLUG

(A) (SUB FOR TH100434)

2шт.

94-2011

FITTING PLUG

(A) (SUB FOR TH100434) (HEAVY DUTY)

2шт.

4208977

DRAIN PLUG

(A) (SUB FOR TH111351)

2шт.

4208977

DRAIN PLUG

(A) (SUB FOR TH111351) (HEAVY DUTY)

1шт.

17

37H99

SCREW

0.100" X 1/4"

2шт.

18

SERIAL NUMBER PLATE

(SUB AT112588 OR 9084887)

1шт.

19

CH11570

O-RING

1шт.

20

15M7036

DRAIN PLUG

(SUB FOR TH109285 OR 0309805) (SUB FOR T107751 OR TH111931, ALONG WITH CH11570)

1шт.

CH11570

O-RING

(USE WITH 0309805 OR 15M7036)

1шт.

21

94-2010

FITTING PLUG

(SUB FOR TH100689)

1шт.

22

9074972

RELIEF VALVE

(SUB FOR AT112590)

2шт.

9085428

RELIEF VALVE

(SUB FOR AT90578)

2шт.

26

4195071

FITTING PLUG

(SUB FOR T107795)

2шт.

27

AT318035

O-RING

(SUB FOR 4506424, TH100055)

2шт.

28

4174072

SPRING

(SUB FOR T107789)

2шт.

29

4174629

POPPET

(SUB FOR T107788)

2шт.

30

4177927

PIN

(SUB FOR T107780)

2шт.

31

9084887

FLOW CONTROL HYD. VALVE

(SUB FOR AT112588)

1шт.

9089885

VALVE

(SUB FOR AT90577)

1шт.

9084888

FLOW CONTROL HYD. VALVE

(SUB FOR AT112592) (HEAVY DUTY)

1шт.

9089885

VALVE

(SUB FOR AT90577) (HEAVY DUTY)

1шт.
